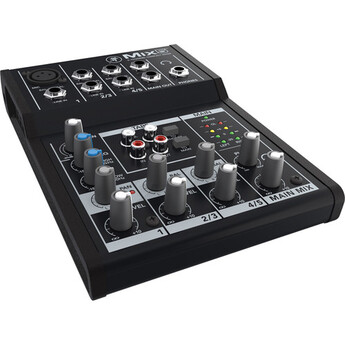

Mackie Mix5 - 5-Channel Compact Mixer
Model: MIX5
MACKIE Warranty


- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 2.65 lb |
Box Dimensions (LxWxH) | 11.5 x 6.6 x 3.3" |
General Information
Attenuation and Crosstalk | (20 Hz – 20 kHz bandwidth)Inputs to outputs @1 kHz (-85 dB)Main mix off @1 kHz (-75 dB) |
Frequency Response | Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz |
Equivalent Input Noise | -125 dBu, (mic in to insert send out, max gain) |
Common Mode Rejection Ratio | 1 kHz better than –70 dB, (mic in to insert send out, max gain) |
Impedance | Mic In: 2 kOhms All Other Inputs: 10 kOhms or greaterTape Out : 1 kOhmsPhones: 22 ohmsAll Other Outputs: 120 ohms unbalanced, 240 ohms balanced |
Noise | (20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)All outputs, master levels and channel levels off –100 dBuAll outputs, master levels unity, all channel levels off –90 dBuAll outputs, master levels unity, 1 channel level unity –85 dBu |
Equalization | High Shelving: ±15 dB @ 12 kHzLow Shelving: ±15 dB @ 80 Hz |
Power Requirements | Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]Output: 18 VAC, 600 mA |
Dimensions | 1.7 x 5.5 x 7.7" (43 x 140 x 196 mm) |
Weight | 1.4 lb (0.6 kg) |
Maximum Level | Mic Inputs (XLR): +19 dBuAux Return In: +16 dBu [Mix 8]All Other Inputs: +21 dBuAll Outputs: +21 dBu |
THD+N | (20 Hz – 30 kHz bandwidth)Mic input to main output <0.25% @ +4 dBu output |
- 1 Mic/Line Inputs with 2-Band EQ
- 2 Stereo 1/4" Line Inputs
- Stereo RCA Tape Inputs & Outputs
- Pan, Level and Overload Indication
- Dedicated Stereo RCA Inputs
- Headphone and Stereo Control Room Outs
- Compact and Portable
