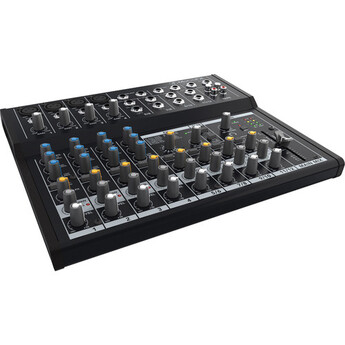

Mackie Mix12FX - 12-Channel Compact Mixer with Effects
Model: MIX12FX








| Package Weight | 5.7 lb |
|---|---|
| Box Dimensions (LxWxH) | 14.5 x 13.2 x 3.2" |
| THD+N | (20 Hz – 30 kHz bandwidth)Mic input to main output <0.25% @ +4 dBu output |
|---|---|
| Attenuation and Crosstalk | (20 Hz – 20 kHz bandwidth)Inputs to outputs @1 kHz –85 dBMain mix off @1 kHz –75 dB |
| Frequency Response | Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz |
| Common Mode Rejection Ratio | 1 kHz better than –70 dB, (mic in to insert send out, max gain) |
| Maximum Level | Mic Inputs (XLR): +19 dBuAll Other Inputs: +21 dBuAll Outputs: +21 dBu |
| Equivalent Input Noise | –122 dBu, (mic in to insert send out, max gain) |
| Equalization | High Shelving: ±15 dB @ 12 kHzMid Peaking: ±15 dB @ 2.5 kHzLow Shelving: ±15 dB @ 80 HzLow Cut Filter: 18 dB/octave, –3 dB @ 75 Hz |
| Power Requirements | Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]Output: 18 VAC, 1000 mA |
| Dimensions | 2.1 x 11.7 x 9.6" (53 x 297 x 244 mm) |
| Weight | 3.7 lb (1.7 kg) |
| Impedance | Mic In: 3.8 kohms All Other Inputs: 10 kohms or greaterTape Out : 1 kohmsPhones: 22 ohmsAll Other Outputs: 120 ohms unbalanced, 240 ohms balanced |
| Noise | (20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN)All outputs, master levels and channel levels off –100 dBuAll outputs, master levels unity, all channel levels off –90 dBuAll outputs, master levels unity, 1 channel level unity –85 dBu |
