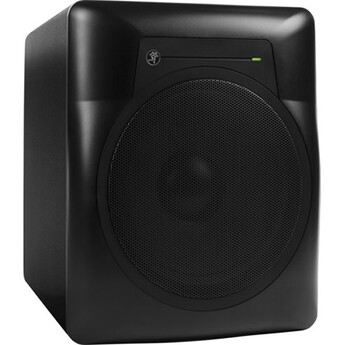

Mackie MR10Smk3 - 10" Powered Subwoofer Studio Monitor
Model: 2048460-00
MACKIE Warranty


- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Back-Ordered
We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.
Thank you! We will be in touch.
Something went wrong. Please try again later.
Specifications
General Information
System Type | Powered studio subwoofer |
Frequency Response | 35 to 180 Hz (-3 dB) 28 to 180 Hz (-10 dB) |
SPL Level | 113 dB @ 3.3' / 1.0 m |
Max Peak SPL | 119 dB @ 3.3' / 1.0 m (per pair) |
LF Driver Size | 10.0" / 254.0 mm (hyperbolic curved cone woofer) |
Amplifier | Low Frequency Power: 120 W, 4 Ohm load, 240 W peak Type: Monolithic IC, Class-A/B with DMOS power stage |
Crossover Type | 12 dB/octave |
Crossover Frequency | Variable from 40 to 180 Hz |
Sensitivity | +4 dBu at 65 Hz for full output |
Input Impedance | 20 kOhms, balanced bridging 10 kOhms, unbalanced |
Input Connectors | 2 x XLR 2 x 1/4" / 6.35 mm TRS |
Output Connectors | 2 x 1/4" / 6.35 mm TRS |
Power | US AC Power Requirements: 120 VAC, 60 Hz AC Connector: 3-pin IEC 250 VAC, 16 A male Fuse 115 VAC: T 2.5 AL / 250 V Power Consumption: 250W with music, loud mix 13 W quiescent (idle) |
Enclosure | 0.6" / 15.9 mm thick MDF with 1.0" / 24.9 mm MDF front panel |
Damping | Adiabatic batting |
Dimensions | 15.0 x 12.6 x 15.0" / 381.0 x 320.0 x 381.0 mm |
Weight | 27.3 lb / 12.4 kg |
- 10" Glass Aramid Composite Woofer
- 120W of Class-A/B Amplification
- Adjustable 40 to 180 Hz Crossover Point
- Shelf Ported for Deep Low End
- XLR and TRS Inputs
- Vibration-Absorbing Rubber Feet
- Polarity Switch
- All-Wood Cabinet for Durability
- Mackie MR10Smk3 - 10" Powered Subwoofer Studio Monitor
- Power Cord
- Limited 1-Year Warranty
