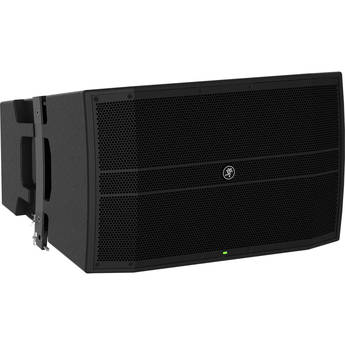

Mackie DRM12A 2000W 12" Arrayable Powered Loudspeaker
Model: DRM12A








| Amplifier | Class-D 2000 W Peak |
|---|---|
| Frequency Response | 50 Hz to 20 kHz (-10 dB) |
| Maximum SPL | 135 dB |
| Compression Driver | 3 x 1.0" / 25.4 mm |
| Woofer | 12.0" / 304.8 mm |
| Coverage | H x V: 110 × 20° |
| Onboard Processing | On-Board Processing: Advanced Impulse DSP Module (Precision Crossovers / Transducer Time Alignment / FIR Filtering) User-Adjustable On-Board Processing: DRM Control Dashboard with High-Resolution, Full-Color Display (3-Band PEQ / Application Specific Voicing Modes / Metering Alignment Delay / 6 User Presets) |
| Audio Connectors | Parallel XLR Input and Output |
| Mounting Configuration | Ground Stack, Stand/Pole Mount (Dual Angle), Flown Array |
| Cabinet Construction | Plywood Cabinet, Powder-Coated Steel Grille, Touring-Grade Textured Coating |
| Rigging Points | 7 x M10 |
| Power Supply | Universal Power Supply: 100 to 240 VAC with Power Factor Correction Technology |
| Dimensions (H x W x D) | 15.2 x 24.7 x 18.0" / 386.1 x 627.4 x 457.2 mm |
| Weight | 55.0 lb / 24.9 kg |
