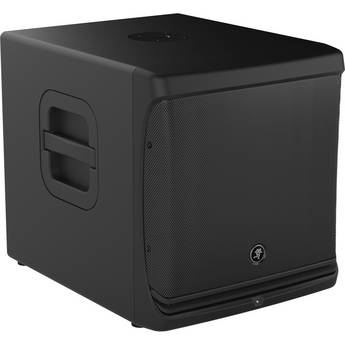

Mackie DLM12S Powered 12" Subwoofer
Model: DLM12S








| Frequency Response | 35 Hz to 90 Hz or 35 Hz to 135 Hz, (-10 dB) user-selectable |
|---|---|
| System Processor | DLP Digital System Processing: Volume [VOL]: Off (-∞ dB) to +10 dB Crossover [XVR]: Four preset modes, one variable mode Delay [DLY]: 0 to 300 ms Memory [MEM]: 3 locations for instant venue setting recall and factory reset |
| Crossover Point | 60 to 120 Hz, user-selectable |
| Maximum Sound Pressure Level (SPL) | 128 dB @ 1 m, calculated |
| Box Dimensions (LxWxH) | 27.5 x 23.5 x 23.0" |
|---|---|
| Package Weight | 62.5 lb |
| Active or Passive | Active, Class-D amplification |
|---|---|
| Audio Outputs | 2 x XLR balanced - Full Range Outputs (1 x L/R) parallel with input 2 x XLR balanced - High Pass Outputs (1 x L/R) |
| Input Impedances | 20kΩ balanced 10kΩ unbalanced |
| Audio Inputs | 2 x XLR balanced (1 x L/R) |
| AC Plug Style | 3-pin IEC 250VAC |
|---|---|
| Dimensions (H x W x D) | 17.9 x 16.4 x 20.8" (455 x 417 x 529 mm) |
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
| Weight | 48 lb (21.7 kg) |
| Construction | Durable 0.6" (15 mm) poplar cabinet Black paint finish Handle on each side Powder-coated 20-gauge steel grille |
| Power Requirements | 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W |
| Rated Power | 1,000W RMS 2,000W peak |
|---|---|
| Cooling | Multi-speed fan |
| Transducer | 12" (305 mm) woofer diameter 3" (76 mm) voice coil diameter Paper diaphragm material Ferrite magnet material |
