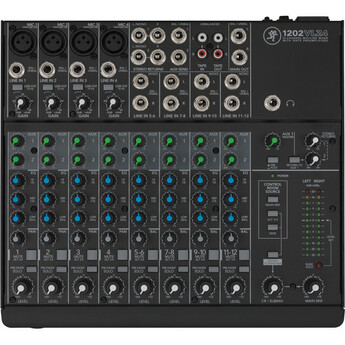

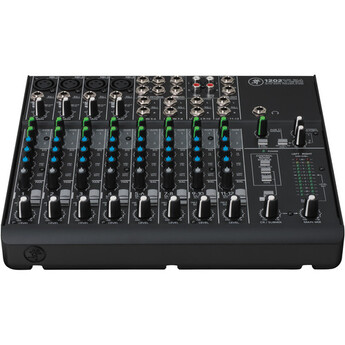

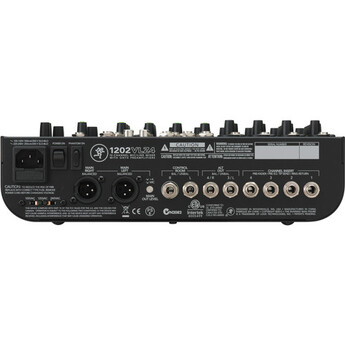

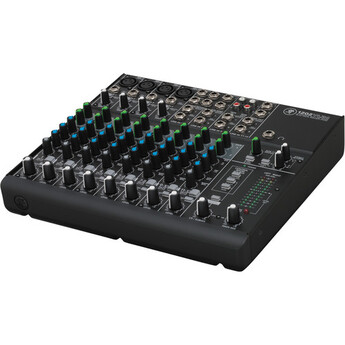

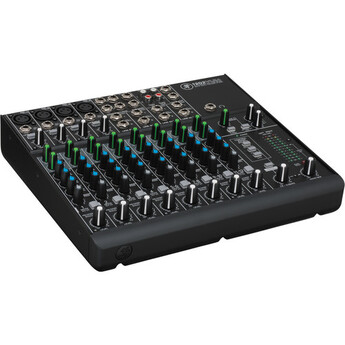

Mackie 1202VLZ4 12-Channel Compact Mixer
Model: 1202-VLZ4


- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
General Information
Operating Temperature | 32 to 104°F (0 to 40°C) |
Noise | Main Mix Noise: Main Mix Knob Down, Channel Gain Knobs Down: -100 dBu Main Mix Knob @ Unity, Channel Gain Knobs Down: -86.5 dBu (90 dB signal to noise ratio, ref +4 dBu) Main Mix Knob @ Unity, Channel Gain Knobs @ Unity: -84.5 dBu (20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1 to 4, gain @ unity, channel EQs flat, all channels assigned to main mix, channels 1 and 3 panned left, 2 and 4 panned right) |
Total Harmonic Distortion (THD) | Microphone Pre @ Insert: (1 kHz @ 30 dB gain, 20 Hz to 20 kHz bandwidth) |
Crosstalk / Attenuation | Main Mix Knob Down: -75 dBu Channel Alt / Mute Switch Engaged: -85 dBu Channel Gain Knob Down: -87 dBu (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) |
Frequency Response | Microphone Input to Main Output (Gain @ Unity): +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, 100 kHz |
Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz Microphone input to insert send out, maximum gain |
Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz |
Maximum Level | Microphone In: +22 dBu Tape In: +16 dBu All Other Inputs: +22 dBu Main Mix XLR Out: +28 dBu All Other Outputs: +22 dBu |
Impedance | Microphone In: 2.5 kΩ Channel Insert Return: 2.5 kΩ All Other Inputs: 10 kΩ or greater Tape Out: 1.1 kΩ All Other Outputs: 120 Ω |
Equalizer | High Shelving: ±15 dB @ 12 kHz Mid Peaking: ±15 dB @ 2.5 kHz Low Shelving: ±15 dB @ 80 Hz |
Power Consumption | 25 W, 100 to 120 VAC, 50 to 60 Hz |
Fuse Rating | 100 to 120 V: 500 mA slo blo, 5 x 20 mm 220 to 240 V: 250 mA slo blo, 5 x 20 mm |
Dimensions (H x W x D) | 10.7 x 11.9 x 3.0" (273.0 x 303.0 x 75.0 mm) |
Weight | 6.5 lb (3.0 kg) |
I bought 2 in the 90's. One for me. One for my father who plays.I bought a new one because the Front of House mixers are much cleaner now.How ever the other still work fine. Just a little noise.
-
+
Durable, Excellent Craftsmanship, Great Sound
I really do like this compact mixer for what it does. It's small, portable and does everything a small professional mixer should do. The only negative is that I wish the mute buttons had lights so it would be easier to see if a channel was muted or not.
No noise, great control very satisfied with this one
i have used Mackie mixers in my studio and on location for music gigs and three they get the job done with superb quality. Mackie has the best pre-amps for my mics. I like the fact that the 1202 VLZ4 has two aux sends and more important to me two aux returns.
We needed a small rack mount mixer for a production. The 1202VLZ4 did the job. We needed it to fit into a console 19 inh wide and 12 inch tall opening and it did. The only thing negative to say is that during use, sliders would have been more convient than the knobs.
all the small mackie mixers are excellent and durable and perfectly priced i have used higher-end consoles with cleaner channels but for the most part soud quality is same
This machine is great! This mixer is a joy to work with, and is easy to use. I have used a mackie vlz3 before. Which to me had top notch audio output. The vlz4 maintains that quality. If not improves upon it. This thing feels like it is built to last. It is a very sturdy machine.
Mackie has topped itself again. Super quiet preamps. The best.
I purchased this mixer for my live electronic music rig. I needed a mixer with two aux sends and a small footprint. My live electronic rig has to fit entirely on a 2 X 4 table and I was having a hard time finding something with all the channels and features I needed that would fit.
My 5th Mackie mixer. I keep scaling down in size from larger to smaller models. This is my second VLZ 1202. The first one started to develop very scratchy gain pots after three years of weekly use and life in a road case. Finally died after being dropped.
- Mackie 1202VLZ4 12-Channel Compact Mixer
- Power Supply
- Limited 1-Year Warranty
