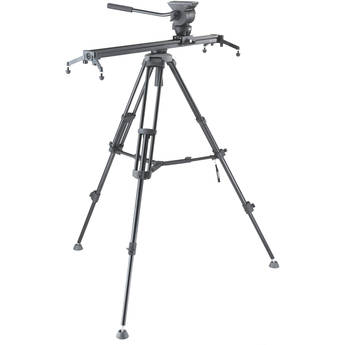

Libec ALX S8 KIT Head, Tripod, and Slider Kit
Model: ALX S8KIT








| Box Dimensions (LxWxH) | 15.5 x 8.4 x 5.9" |
|---|---|
| Box Dimensions (LxWxH) | 34.5 x 6.5 x 6.5" |
| Box Dimensions (LxWxH) | 34.5 x 8.0 x 7.0" |
| Spreader | Mid-level |
|---|---|
| Leg Lock Type | Twist knobs |
| Leg Stages/Sections | 2/3 |
| Material | Aluminum |
| Counterbalance | Fixed |
|---|---|
| Drag Mode | Fixed |
| Tilt Lock | Yes |
| Base | 75 mm ball with 3/8"-16-threaded flat base |
| Leveling Bubble | Yes (illuminated) |
| Weight | 2.9 lb / 1.3 kg |
| Payload | 9 lb / 4 kg |
| Camera Plate | Sliding plate |
| Sliding Range | 1.6" (+/-40 mm) |
| Plate Attachment | 1/4" screw with video pin |
| Screw Sliding Range | 3" / 76 mm |
| Tilt Angle | +90° / -80° |
| Pan Angle | 360° |
| Tripod Mount Types | 75 mm ball base 1/4"-20 and 3/8"-16 threaded holes on bottom of 75 mm ball base 1/4"-20 and 3/8"-16 threads along the bottom for mounting on two tripods |
| Accessory Mounting | 1/4"-20 and 3/8"-16 threaded holes (at each end of tripod) Rosettes (one at each end of tripod) |
| Material | Aluminum alloy and engineering plastic |
| Length | 32.6" (83 cm) |
| Weight | 4 lb (1.8 kg) (excluding tripod mount adapter and bowl tie-down) |
| Sliding Range | 28" (71.1 cm) |
| Payload | 33 lb (15 kg) (when not mounted on a tripod) |
| Head Attachment | 3/8"-16 screw |
| Weight | 5.5 lb / 2.5 kg |
|---|---|
| Minimum Height | 23.5" / 60 cm |
| Maximum Height | 59" / 150 cm |
| Head Attachment Fitting | 75mm bowl |
| Load Capacity | 55 lb / 25 kg |
