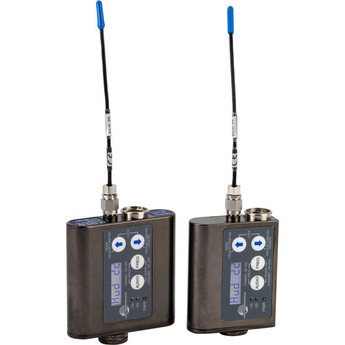

Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block E07-941: 941 to 959 MHz)
Model: SMQV/E07-941
Lectrosonics Warranty
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Unavailable
We are sorry. At this time, we are not accepting offers on this product.
Specifications
Transmitter
| RF Output Power | 50 / 100 mW (Switchable) |
| Transmitter Type | Bodypack |
| Weight | 3.7 oz / 105 g (with Batteries) |
| Dimensions | 2.4 x 2.3 x 0.6" / 60 x 58 x 16 mm |
| Display & Indicators | Backlit LCD (Audio Level, Battery Status, Channel, Group) |
| USB/Lightning Connectivity | None |
| Battery Type | 2 x AA (Not Included) |
| Power Requirements | Battery |
| Antenna | 1 x Flexible Whip, Detachable (Beltpack) |
| Frequency Response | 35 Hz to 20 kHz ±1 dB |
| Signal Processing | High-Pass Filter: -3 dB at 150 Hz |
| Gain Range | 44 dB |
| Auto-Level Control | No |
| Audio Input Level | 0.5 to 50 mV (Mic Level) 17 to 1700 mV (Line Level) |
| Muting | Off/On Switch |
| Pad | None |
| Plug-In Power | 2 to 5 V |
| Included Cable Connector | None |
| Audio I/O | 1 x TA5/Mini XLR 5-Pin Female Input (Lockable) |
Packaging Info
| Box Dimensions (LxWxH) | 9.8 x 7.9 x 3.1" |
| Package Weight | 0.975 lb |
General Information
| THD | 0.2 % |
| SNR | 107 dB |
| Modulation | FM |
| Encryption | None |
| Timecode Support | No |
| Built-In Recorder | No |
| RF Channel Scanning | Auto-Scan |
| Frequency Step Size | 25 kHz 100 kHz |
| RF Bandwidth | 18 MHz |
| RF Frequency Band | 941.525 to 959.825 MHz |
| Wireless Technology | Analog/Digital Hybrid |
- Frequency Block E07-941
- Digital Hybrid Wireless Technology
- Selectable RF Output Power
- 180 UHF Frequencies at 100 kHz
- Membrane-Switch Controls, LCD Display
- Wide Input Dynamic Range
- DSP-Based Pilot-Tone Signal
- Circulator/Isolator Output Stage
- Splash-Proof, Machined Aluminum Housing
- Non-Corrosive, Damage-Resistant Finish
- Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter (Block E07-941: 941 to 959 MHz)
- Antenna
- Mic Connector Kit
- Foam Insulating Pads
- Belt Clip
- Carrying Pouch
- Limited 1-Year Manufacturer Warranty
