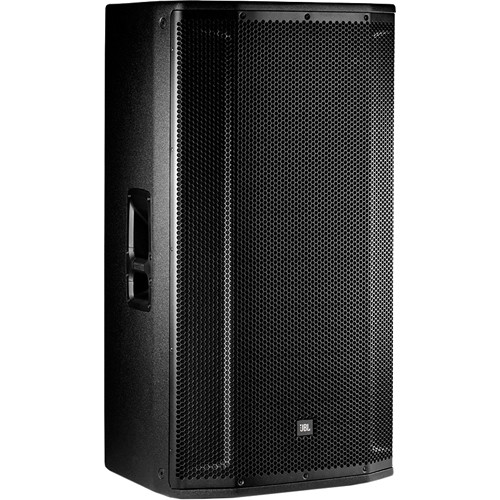

jbl SRX835P 15" Three-Way Bass Reflex Self Powered System
Model: SRX835P








| Connectors | 2x Neutrik ¼ - XLR combo input 2x Neutrik XLR-3M Output 1 x XLR-3M mix output |
|---|---|
| SPL | 137 dB |
| Max SPL Level | 137 dB |
| Frequency Response | 41 to 20,000 Hz (-3 dB) |
| Coverage | 60° x 40° |
| Amplifier | Class D |
| Power Rating | 2000 W peak, 1500 W continuous |
| Input Impedance | 40 kilOhm balanced 20 kilOhm unbalanced |
| Maximum Line Input Gain | 21 dB |
| Gain | Line input:21 dB Consumer input: 3 dB Mic input: 45 dB Line input: 20 dBu Consumer input: 8 dBu Mic input: -4 dBu |
| LED Indicators | Power LED: green Network Link: green Network Data: yellow |
| Cooling | On demand variable speed fan |
| AC Power | 100 to 240 V at 50/60 Hz |
| Power Consumption | 120 V: 2.2 A (1/8th power), 5.6 A (1/3rd power) |
| Handles | 2 |
| Crossover | 330 and 2,400 Hz |
| Material | 0.7" (18 mm) plywood |
| Finish | Obsidian Duraflex finish |
| Grille | Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| Mounting | Single 36 mm pole socket12x M10 suspension points |
| Dimensions (L x W x H) | 38.74 x 21.4 x 18.74" (98.40 x 54.40 x 47.60 cm) |
| Weight | 85.0 lb (38.6 kg) |
