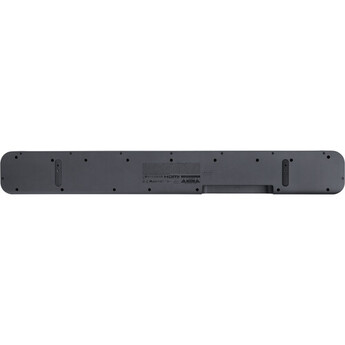

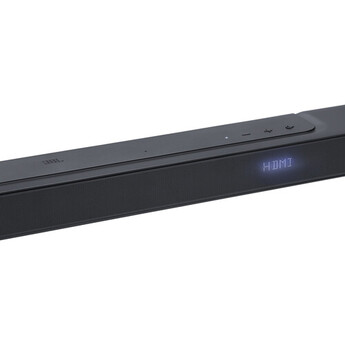

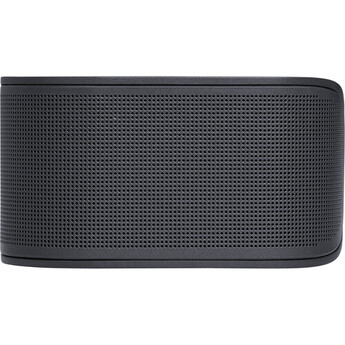

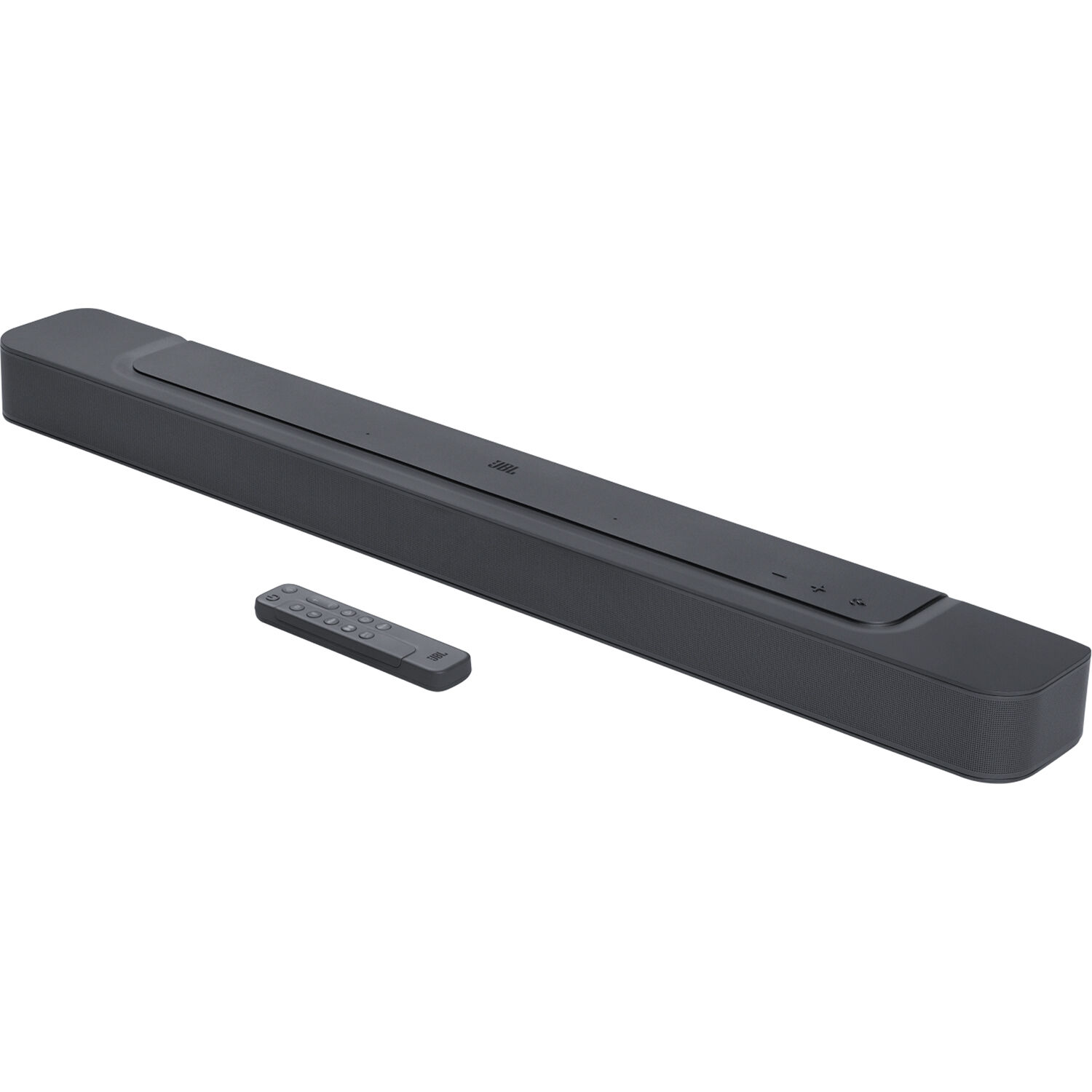

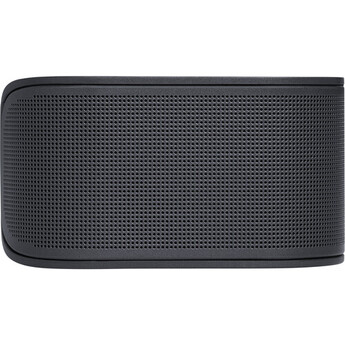

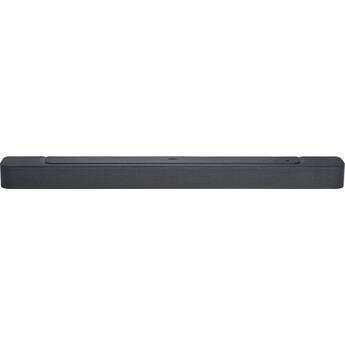

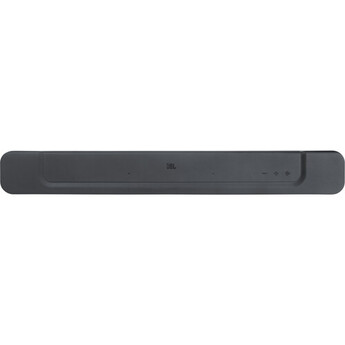

JBL Bar 300MK2 225W 5-Channel Dolby Atmos Soundbar
Model: JBLBAR300M2BLKAM








| Total Harmonic Distortion (THD) | <1% |
|---|---|
| Channel Configuration | 5.0-Channel |
| Enclosure Type | Ported |
| High-Frequency Drivers | 4x 0.8" / 20 mm Tweeter |
| Full-Range Drivers | 5x 1.7 x 3.1" / 42 x 80 mm |
| Amplifier Output | 225 W RMS |
| Frequency Response | 50 Hz to 20 kHz |
| Power Consumption | < 2.0 W (Network Standby) |
|---|---|
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Conditions | 32 to 113°F / 0 to 45°C |
|---|---|
| Recommended Screen Size | 42" and Up |

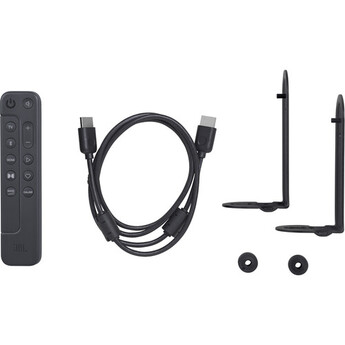

| Wall Mountable | Yes (with Included Hardware) |
| Weight | 6.4 lb / 2.9 kg |
| Dimensions | 37 x 2 x 4.1" / 940 x 50.5 x 104 mm |
| Box Dimensions (LxWxH) | 46.5 x 6.25 x 4.75" |
|---|---|
| Package Weight | 10.5 lb |
| Wireless Audio Protocols | AirPlay, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect, TIDAL Connect, Wi-Fi |
|---|---|
| High-Frequency Drivers | 4x 0.8" / 20 mm Tweeter |
| Full-Range Drivers | 5x 1.7 x 3.1" / 42 x 80 mm |

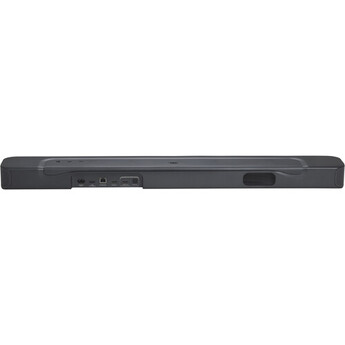

| Inputs | 1x HDMI 1x Optical TOSLINK - Audio |
| Outputs | 1x HDMI - eARC/Audio |
| Channel Configuration | 5.0-Channel |
| Wireless | Wi-Fi 6 (802.11ax) / Bluetooth 5.3 |
| Audio Decoding | Dolby Atmos |
| HDMI Compliance | eARC |
| Wall Mountable | Yes (with Included Hardware) |
| Inputs | 1x HDMI 1x Optical TOSLINK - Audio |
|---|---|
| Wireless Audio Protocols | AirPlay, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect, TIDAL Connect, Wi-Fi |
| Ethernet I/O | No |
| USB I/O | 1x USB-A (Unspecified Interface) |
| Outputs | 1x HDMI - eARC/Audio |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Setup |
| Bluetooth Profiles | A2DP 1.3, AVRCP 1.5 |
| NFC | No |
| Bluetooth | 5.3 |
| Wireless | Wi-Fi 6 (802.11ax) / Bluetooth 5.3 |
| Audio Decoding | Dolby Atmos |
|---|---|
| HDMI Compliance | eARC |
| HDR Support | Yes: HDR10/HDR10+/Dolby Vision |
| HDCP Support | Yes: Version 2.3 |
| Supported File Formats | MP3 |
