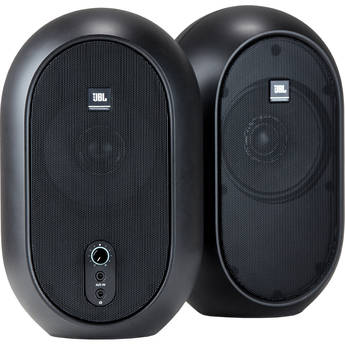

Jbl 1 Series 104 Compact Powered Desktop Reference Monitors
Model #JBL104SET
JBL Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- All Products are New and from Manufacturer Authorized Retailers
- 30 day return policy
- Free Shipping
No Additional Fees
Name your price
ON A BRAND NEW JBL JBL104SET
Your Chances of Success
Your chances of success
How it works?
-
You name the price you want to pay for a product.
-
We send your offer to a network of Certified Retailers.
-
If the retailer likes your offer you get that price for the product.
Specifications
Studio Monitor
| Enclosure | Bass-Reflex |
| Amplification | 2 x Full-Range Amplifier: Class-D Rated at 30 W 1 x 60W CLass-D power distributed to each speaker |
| Power Rating | 30 W RMS per Channel |
| Drivers | LF Driver: 1 x 4.65" / 118 mm Coaxial DomeHF Driver: 1 x 0.75" / 19 mm Coaxial Dome |
| Monitor Type | Active 2-Way |
Power
| AC Input Power | 100 to 240 VAC at 50/60 Hz |
Performance
| Frequency Range | 60 Hz to 20 kHz |
| Total Harmonic Distortion (THD) | <1% |
| Protections and Limiting | Limiter |
| Dispersion | 120 x 80° (Horizontal x Vertical) |
| Maximum Input Level | +6 dBV (Unbalanced)+20.3 dBu (Balanced) |
| Signal-to-Noise Ratio | 75 dBA |
| Maximum Sound Pressure Level (SPL) | 104 dB Momentary Peak |
General
| Weight | 4.5 lb / 2.0 kg (Active Speaker)3.8 lb / 1.7 kg (Passive Speaker) |
| Enclosure Material | ABS |
| Dimensions (W x H x D) | 6.0 x 4.9 x 9.7" / 153.0 x 124.0 x 247.0 mm (Each) |
Crossover
| Crossover Frequency | High-Pass Frequency: 1725 Hz, 6 dB/Octave Slope |
Connectivity
| I/O | 2 x 1/4" TRS Balanced Female Analog Input2 x RCA Unbalanced Female Analog Input1 x 1/8" / 3.5 mm TRS Unbalanced Female Analog Input1 x 1/8" / 3.5 mm TRS Unbalanced Female Analog Output |
- Acoustically Optimized for Desktops
- For Referencing & Casual Listening
- Coaxial Design for Smooth Response
- 4.5" LF & 0.75" HF Drivers
- 60W Class-D Power, 30W Per Speaker
- Low Frequency Port for Extended Lows
- 3 Sets of Inputs: 1/4", RCA & 3.5mm
- Speaker-Muting Headphone Output
- Front Panel Volume Control
- 89 dB SPL (Continuous)
- JBL 1 Series 104 Compact Powered Desktop Reference Monitors
- Extension Monitor Speaker Wire (6.6' / 2.0m)
- 3.5mm to RCA Audio Cable
- Power Cable
- Limited 1-Year Warranty
