Model: JKP90DPWW

GE Warranty
Image coming big
Image coming big
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • Guaranteed Brand New Products
  • All Products Sold by Manufacturer Authorized Retailers
  • 30 Day Return Policy
  • Free Shipping
    No Additional Fees

Product Unavailable

We are sorry. At this time, we are not accepting offers on this product.



Oven interior dimensions (upper) 16 x 11-1/8 x 16-3/8
Net weight (lbs.) 149 lb
Cutout dimensions (w x h x d) (in.) 25 x 41-1/4 x 23-5/8
Overall depth 23 5/8 in
Cabinet width 27 in
Overall height 42 1/2 in
Oven interior dimensions (lower) 21 1/2 x 17 x 18 1/4
Approximate shipping weight 179 lb
Overall width 26 5/8 in


Parts warranty Limited 1-year entire appliance
Labor warranty Limited 1-year entire appliance
Warranty notes See written warranty for full details

Technical details

Warranty conditions Parts and labor
Broiler element location Top
Timer Yes
Amps 30
Microwave Yes
Steam oven No
Sabbath mode Yes
Undercounter installable No
Warranty terms 1 Year
Cutout height 41.25"
Digital temperature display Yes
Speed oven No
Clock Digital
Microwave watts 1000
Exterior depth 23.625"
Racks 2
Removable door Yes
Proofing No
Temperature probe No
Ada compliant No
Exterior height 42.25"
Oven watts 3400
Delay bake Yes
Oven control type Digital
With turn table Yes
Star-k certified No
Stainless steel handle No
Cutout width 25"
Cutout depth 23.625"
Viewing window Yes
With turntable Yes

Power / ratings

Amp rating at 208v 30
Bake wattage 2650W
Amp rating at 240v 30
Broiler wattage 3400W
Kw rating at 240v 6.4
Kw rating at 208v 4.8


Cooking technology Microwave/Traditional
Cleaning time Variable with Delay Clean Option Lower
Oven cleaning type Self-Clean Lower
Turntable size (in.) 15-1/2
Interior oven light 1 Auto Halogen
Power levels 10
Oven rack features 2 Oven Racks 4 Embossed Rack Positions
Control type Electronic Microwave Touch Controls
Configuration Double Oven
Control features Auto Defrost 99 Min. / 99 Sec. Kitchen Timer
Cooking system Turntable - Microwave
Convection oven No
Capacity 3.8 cu. ft.
Automatic self-clean oven door lock Lower
Oven control features Digipad Numeric Entry Mis-Wire Detection Optional Clock Display Delay Bake Option Certified Sabbath Mode Lower C(degree) or F(degree) Programmable Lower Audible Preheat Signal Lower Control Lock Capability Lower Electronic Clock&Kitchen Timer
Self-cleaning Yes
Microwave watts (iec-705) 1000.0 W
Temperature management system TrueTemp(TM) System Lower
Watts 1000.0 W
Oven interior Hidden Bake
Volts 240/208 Volts
Oven cooking modes Thermal Bake (Lower)
Microwave sensor cooking controls Auto Cook Popcorn Potatoes Reheat
Microwave convenience cooking controls Beverage Cook Reheat Snacks


Depth 23.625"
Exterior width 27"
Width 26.625"
Height 42.5"


Unit capacity Extra-Large Oven
Capacity (cu. ft.) 1.6 Upper / 3.8 Lower


Color appearance White on White
Installation With Warming Drawer
Fuel type Electric
Handle Color-Matched High-Gloss
Style Double
Frameless oven door(s) White Glass
Convection No
Color White
Drawer None
Oven door features Big Hearth Oven Window (Lower)
User Reviews
10 October 2014

We have had nothing but major headaches with this. The broiler sensor shorted out and we had a flash fire in the oven. The microwave paint buckeled and peeled but we were told it was safe to use. Finally it cracked apart like a broken eggshell emitting who knows how much radiation onto us.

18 July 2014

Purchased this to replace a KitchenAid Architect Series since it had the same dimensions and would be an easy install in the cabinet. It has a lot less features than the KitchenAid, but still seemed to be a decent oven/microwave combo.

13 March 2014

The microwave portion of the walloven combo failed after 13 months. The micro wave will not shut off unless the door is left open or the breaker is opened. Apparently this is not uncommon and the problem is due to internal wiring and the control board (according to GE).

3 May 2013

After buying this appliance in September of 2010, just after 1 year, the keyboard control unit died - and after a lot of arguments with GE, they replaced it for free. Lately, the paint in the microwave is peeling off. This time around GE is not prepared to replace the unit.

28 May 2011

Had to replace a 25 year old oven/micro combo that was also a GE. After looking quite awhile we decided on this unit. Since it is a special order we did not see it until it was installed. It happened to be a perfect fit for the space from our previous unit and looks great.

  • +

    High quality, Durable, stylish

Product Highlights

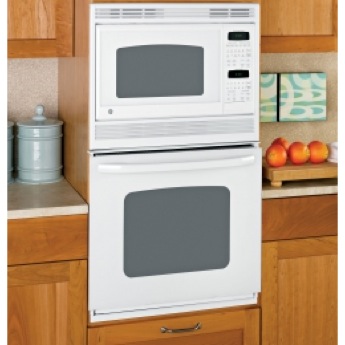

  • JKP90DPWW 27" Double Electric Combination Wall Oven with 3.8 cu. ft Self Clean Oven
  • 1.6 cu. ft Microwave
  • 1
  • 000 Watts
  • Sensor Cooking and TrueTemp Temperature System in White
