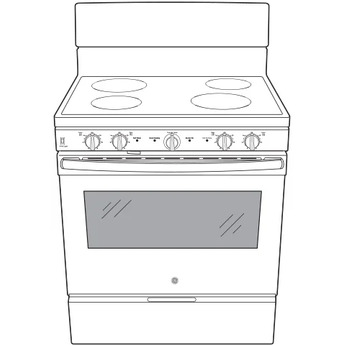

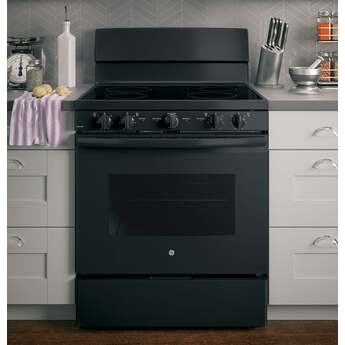

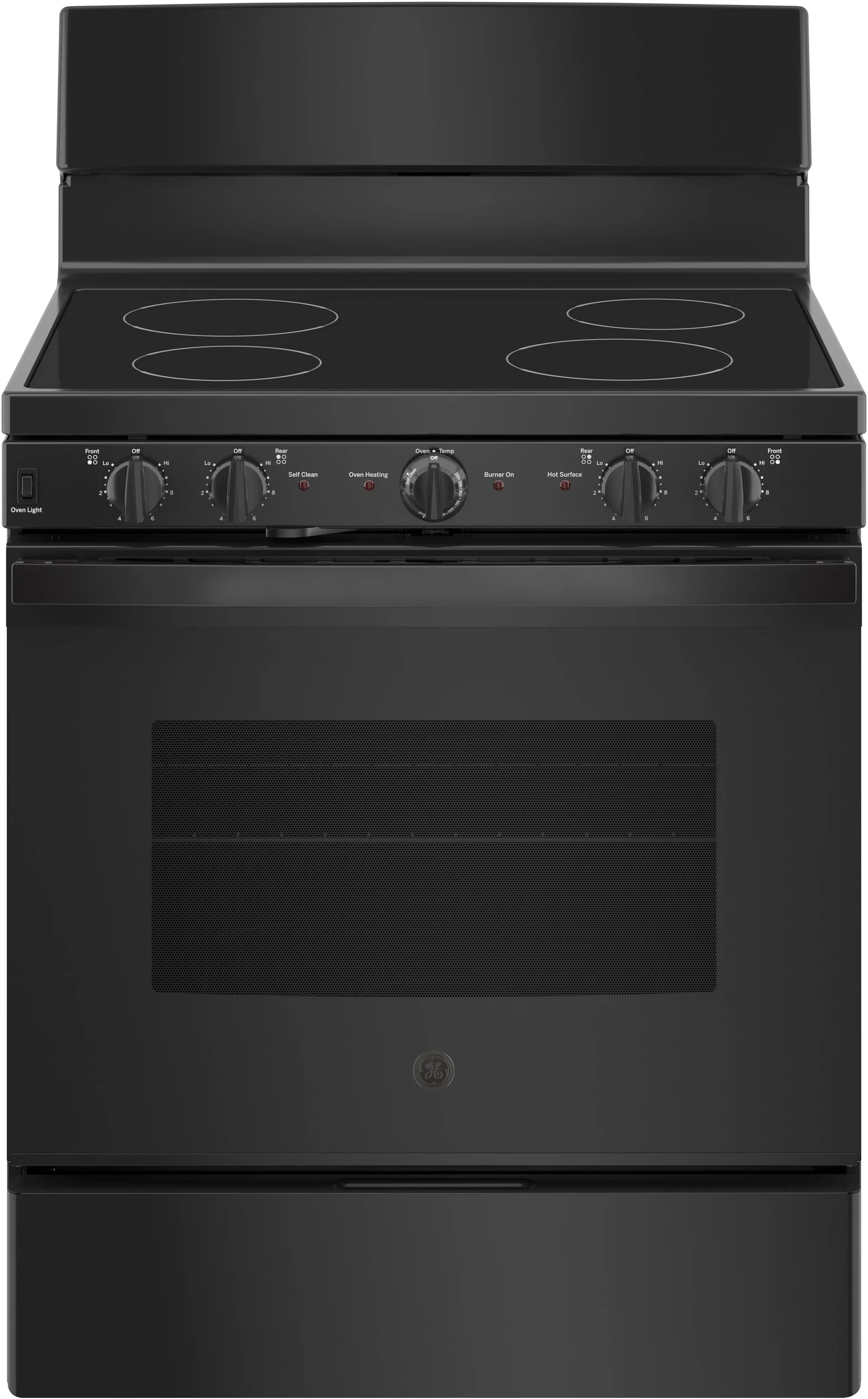

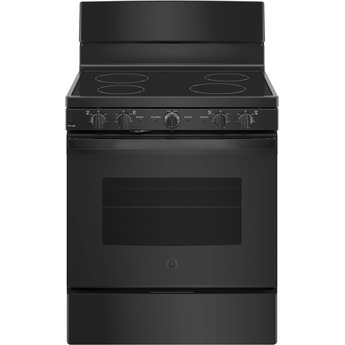

GE 30" Black Electric Smoothtop Range - ADA Compliant with Self Clean
Model: JB480DMBB

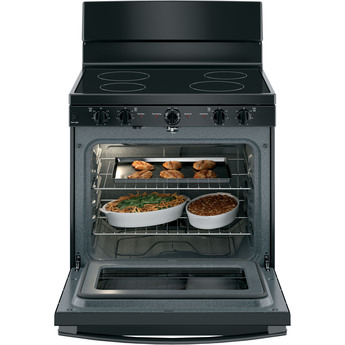

5.0 cu. ft. oven capacity
Cook more dishes at once
Self-clean oven
Cleans the oven cavity without the need for scrubbing

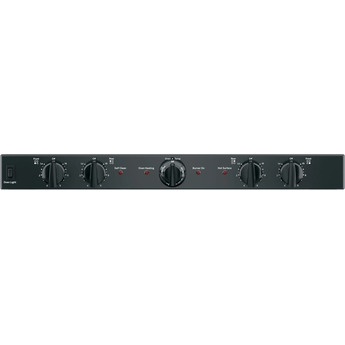

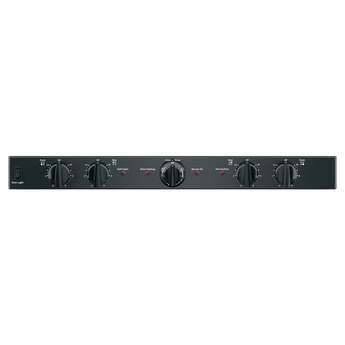

Front Controls
Easily-assessible controls make it simple to control the stovetop and oven
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
| CA Prop. 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
|---|
| Burner Set 2 QTY | 1 |
|---|---|
| Certifications | ADA Compliant |
| Fuel Type | Electric |
| Capacity | 5.0 cu. ft. |
| Primary Oven Capacity | 5.0 cu. ft. |
| Voltage | 240 |
| Amps | 40 |
| Burner Set 1 QTY | 1 |
| Burner Set 1 Output | 1500W |
| Burner Set 2 Output | 2000W |
| Burner Set 3 QTY | 1 |
| Burner Set 3 Output | 1500W |
| Burner Set 4 QTY | 1 |
| Burner Set 4 Output | 2000W |
| Bake Power (Watts) | 2585 |
| Broil Power (Watts) | 3410 |
| Cooktop Control Type | Knobs |
|---|---|
| Hot Surface Indicator Light | Yes |
| Digital Temperature Display | No |
| Convection | No |
| Delay Bake | No |
| Installation Type | Freestanding |

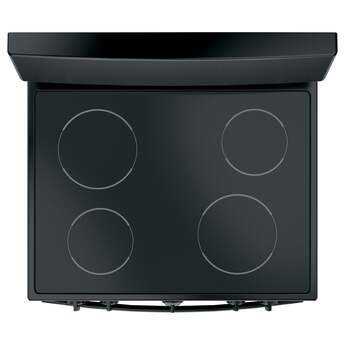

| Burner Type | Smoothtop |
| Number of Burners | 4 Burners |
| Appliance Color | Black |
|---|---|
| Type | Single |
| Weight | 141 |
| MFG SKU | JB480DMBB |
| Cooking Surface Features | Hot Surface Indicator Light |
|---|---|

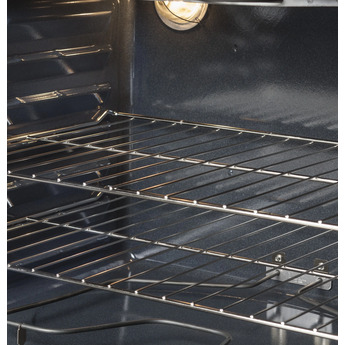

| Oven Features | ADA Compliant, Conventional, Interior Oven Light, Viewing Window |

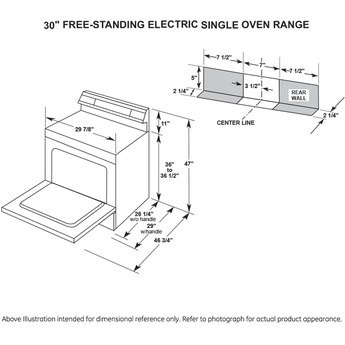

| Width | 30" |
|---|---|
| Height | 47" |
| Interior Width | 23.75" |
| Interior Depth | 18.5" |
| Interior Height | 19" |
| Depth | 29" |
