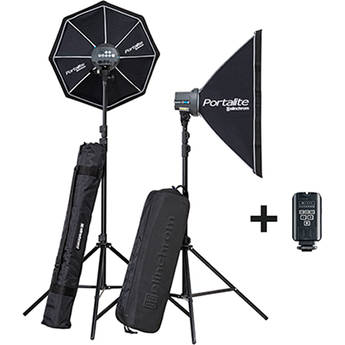

Elinchrom D-Lite RX One/One Softbox To Go Kit
Model: EL20847.2








| Box Dimensions (LxWxH) | 12.6 x 9.1 x 2.7" |
|---|---|
| Box Dimensions (LxWxH) | 4.5 x 3.6 x 2.1" |
| Box Dimensions (LxWxH) | 11.1 x 8.4 x 7.2" |
| Box Dimensions (LxWxH) | 12.6 x 9.1 x 2.7" |
| Box Dimensions (LxWxH) | 5.669 x 1.26 x 1.102" |
| Box Dimensions (LxWxH) | 19.8 x 6.7 x 2.8" |
| Box Dimensions (LxWxH) | 19.8 x 6.7 x 2.8" |
| Box Dimensions (LxWxH) | 11.1 x 8.4 x 7.2" |
| Box Dimensions (LxWxH) | 4.5 x 3.6 x 2.1" |
| Box Dimensions (LxWxH) | 5.669 x 1.26 x 1.102" |
| Flash Sync | Up to 1/320 sec. |
|---|---|
| Sync Voltage | 5.0V Compatibility with digital cameras |
| Power Consumption | 230VAC, 50Hz: No flash / recycling 140W / 310 115VAC, 60Hz: No flash / recycling 190W / 280VA |
| Triggering | Synch cord (3.5 mm), optical slave Integrated Receiver, 4 groups, 8 frequencies Receiver range: 164' (50 m) indoors, 393' (120 m) outdoors |
| Changeable Reflector | Yes |
| Flash Ready Indicator | Audible, visual |
| Fan Cooled | Yes |
| Dimensions | 7.0 x 7.5 x 5.5" (18 x 19 x 14 cm) |
| Weight | 1.98 lb (0.9 kg) |
| Size | 26 x 26" (66 x 66 cm) |
| Shape | Square |
| Compatibility | All Prolinca and Elinchrom flash units since 1974 |
| Removable Front Face | No |
| Removable Interior Baffle | No |
| Accepts Grids | No |
| Requires Speed Ring | Included for Elinchrom |
| Size | 22" (56 cm) |
| Shape | Octa |
| Compatibility | Ranger Quadra heads |
| Removable Front Face | Yes |
| Requires Speed Ring | Yes, included |
| Frequency | 2.4 GHz |
| Channels | 16 (8 in Normal mode, 8 in Speed mode) |
| Groups | 1, 2, 3, 4 |
| Maximum Flash Synchronization Speed | Normal: Limited to the native X-sync of your camera Speed: For digital medium-format cameras |
| Indoor Range | 656' (200 m) for triggering |
| Connectors | Foot for camera hotshoe 2.5 mm sync socket |
| Power Source | 2x AA Batteries |
| Indicators and Controls | Display Group and frequency channel Buttons On Top: Group selection, synchronization mode, channel selection,power down, power up, and test On Side: On/Off |
| Compatibility | Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units Channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with ELC Pro HD and ELB 400 |
| AF Illuminator | No |
| Dimensions | 3.7 x 2.0 x 1.5" (94.9 x 49.9 x 38.3 mm ) |
| Weight | 0.14 lb (68 g) without batteries |
| Maximum Watt/Seconds | 100 |
| Flash Variability | 5.0 Stops in 1/10th stop increments |
| Recycle Time | @ 230V: 0.44 - 1.5 sec @ 115V: 0.45 - 2.1 sec |
| Flash Duration | 1/1,100 - 1/2,200 Sec. min./max. @ t0.5 |
| Voltage Stabilization | 0.5% |
| Auto Dump | Yes |
| Power Requirements | Multi voltage, 90-260VAC |
| Modeling Light Wattage | 100W Control: Proportional, Low, Full, On/Off |
| User Replaceable Flashtube | Yes |
| Umbrella Mount | Centered tub, for EL-umbrellas 7.0 mm diameter Extra fitting on bracket for larger sized shafts |
| Flash Sync | Up to 1/320 sec. |
| Sync Voltage | 5.0V Compatibility with digital cameras |
| Power Consumption | 230VAC, 50Hz: No flash / recycling 140W / 310 115VAC, 60Hz: No flash / recycling 190W / 280VA |
| Triggering | Synch cord (3.5 mm), optical slave Integrated Receiver, 4 groups, 8 frequencies Receiver range: 164' (50 m) indoors, 393' (120 m) outdoors |
| Changeable Reflector | Yes |
| Flash Ready Indicator | Audible, visual |
| Fan Cooled | Yes |
| Dimensions | 7.0 x 7.5 x 5.5" (18 x 19 x 14 cm) |
| Weight | 1.98 lb (0.9 kg) |
| Size | 26 x 26" (66 x 66 cm) |
| Shape | Square |
| Compatibility | All Prolinca and Elinchrom flash units since 1974 |
| Removable Front Face | No |
| Removable Interior Baffle | No |
| Accepts Grids | No |
| Requires Speed Ring | Included for Elinchrom |
| Size | 22" (56 cm) |
| Shape | Octa |
| Compatibility | Ranger Quadra heads |
| Removable Front Face | Yes |
| Requires Speed Ring | Yes, included |
| Frequency | 2.4 GHz |
| Maximum Watt/Seconds | 100 |
| Groups | 1, 2, 3, 4 |
| Maximum Flash Synchronization Speed | Normal: Limited to the native X-sync of your camera Speed: For digital medium-format cameras |
| Indoor Range | 656' (200 m) for triggering |
| Connectors | Foot for camera hotshoe 2.5 mm sync socket |
| Power Source | 2x AA Batteries |
| Indicators and Controls | Display Group and frequency channel Buttons On Top: Group selection, synchronization mode, channel selection,power down, power up, and test On Side: On/Off |
| Compatibility | Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units Channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with ELC Pro HD and ELB 400 |
| AF Illuminator | No |
| Dimensions | 3.7 x 2.0 x 1.5" (94.9 x 49.9 x 38.3 mm ) |
| Weight | 0.14 lb (68 g) without batteries |
| Channels | 16 (8 in Normal mode, 8 in Speed mode) |
| Flash Variability | 5.0 Stops in 1/10th stop increments |
| Recycle Time | @ 230V: 0.44 - 1.5 sec @ 115V: 0.45 - 2.1 sec |
| Flash Duration | 1/1,100 - 1/2,200 Sec. min./max. @ t0.5 |
| Voltage Stabilization | 0.5% |
| Auto Dump | Yes |
| Power Requirements | Multi voltage, 90-260VAC |
| Modeling Light Wattage | 100W Control: Proportional, Low, Full, On/Off |
| User Replaceable Flashtube | Yes |
| Umbrella Mount | Centered tub, for EL-umbrellas 7.0 mm diameter Extra fitting on bracket for larger sized shafts |
