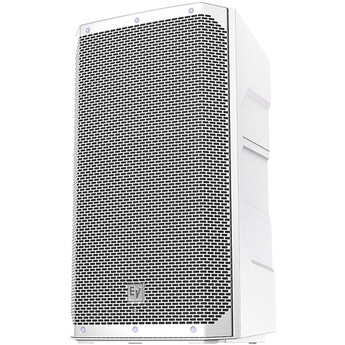

Electro-voice ELX200-12P 12" 2-Way 1200W Powered Speaker (White, Single)
Model: F.01U.361.352








| EQ | Yes |
|---|---|
| Crossover | 1.7 kHz |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
|---|---|
| Current Consumption | 1.8 A |
| Dimensions | 24.6 x 14.3 x 14" / 62.5 x 36.3 x 35.6 cm |
|---|---|
| Construction Material | Metal Grille, Polypropylene |
| Weight | 34.4 lb / 15.6 kg |
| Mounting | 3 x M10 |
| Coverage Angle | 90° H x 60° V |
|---|---|
| Frequency Range | 51 Hz to 20 kHz -10 dB |
| Frequency Response | 57 Hz to 16 kHz -3 dB |
| Maximum SPL | 130 dB |
| Configuration | Active 2-Way |
|---|---|
| Total Power Capacity | 1200 W |
| Amplifier Class | Class-D |
| LF Driver | 1 x 12" / 30.48 cm Woofer |
|---|---|
| HF Driver | 1 x 1" / 51 mm Horn-Loaded Titanium Compression Driver |

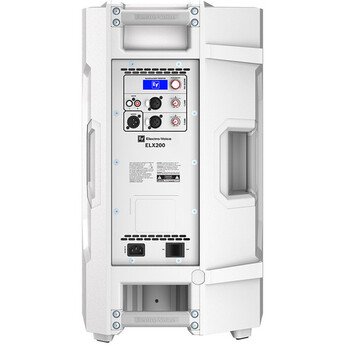

| Audio I/O | 2 x Combo XLR-1/4" TRS Input 1 x Stereo RCA Input 1 x XLR 3-Pin Output |
|---|
