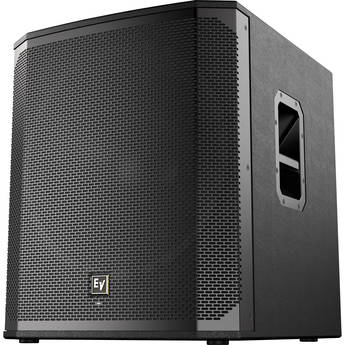

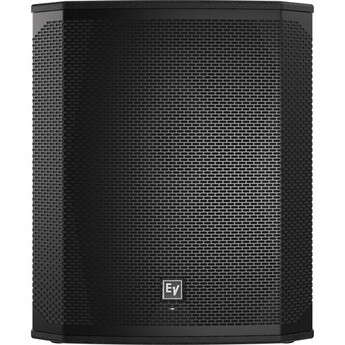

Electro-voice ELX200-18SP-US 18" 1200W Powered Subwoofer (Black, Single)
Model: F.01U.326.050








| Active or Passive | Active |
|---|---|
| Frequency Response | 47 to 105 Hz (-3 dB) |
| Frequency Range | 40 to 145 Hz (-10 dB) |
| Power Capacity | 1200 W |
| Maximum Sound Pressure Level (SPL) | 130 dB |
| Impedance | Not specified by manufacturer |
| Low Pass Frequency | Adjustable: 80/100/120/150 Hz |
| Low Frequency Driver | EVS-18M 18" / 457 mm |
| Enclosure Material | 0.6" / 15 mm plywood with EVCoat 18 AWG steel grille (powder-coated) |

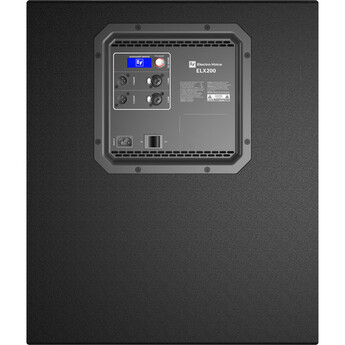

| Input Connections | 2 x XLR-1/4" combo jacks |
| Output Connections | 2 x XLR 3-pin |
| Controls | Master volume |

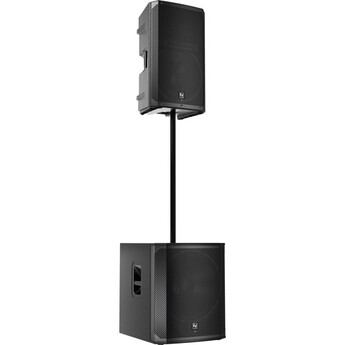

| Mounting | M20 thread for mounting speaker on top of subwoofer |
| Power Requirement | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 1.8 A |
| Dimensions (H x W x D) | 23.3 x 20.0 x 22.5" / 591.8 x 508.0 x 571.5 mm |
| Weight | 64 lb / 29 kg |
