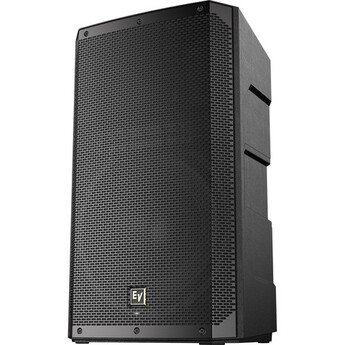

Electro-voice ELX200-15P-US 15" 2-Way 1200W Powered Speaker (Black, Single)
Model: F.01U.326.041








| Active or Passive | Active |
|---|---|
| Frequency Response | 55 Hz to 16 kHz (-3 dB) |
| Frequency Range | 48 Hz to 19 kHz (-10 dB) |
| Power Capacity | 1200 W |
| Maximum Sound Pressure Level (SPL) | 132 dB |
| Impedance | Not specified by manufacturer |
| Amplifier | Class-D |
| Crossover | 1.6 kHz |
| Low Frequency Driver | EVS-15M 15" / 381 mm |
| High Frequency Driver | 1" DH-1C titanium compression driver |
| High-Frequency Waveguide | Electro-Voice SST (Signal Synchronized Transducer) |
| Coverage | 90° x 60° |
| Enclosure Material | Polypropylene with powder-coated 18 AWG steel grille |
| Input Connections | 2 x XLR-1/4" combo jacks 2 x RCA coaxial (one L/R pair) |
| Output Connections | 1 x XLR 3-pin |
| Controls | Input 1 gain Input 2 gain Master volume |
| DSP | 4 x factory presets 5 x user presets 3-band EQ |
| Mounting | 3 x M10 threaded suspension points |
| Power Requirement | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 1.8 A |
| Dimensions (H x W x D) | 27.9 x 16.8 x 15.5" / 708.7 x 426.7 x 393.7 mm |
| Weight | 41.7 lb / 18.9 kg |
