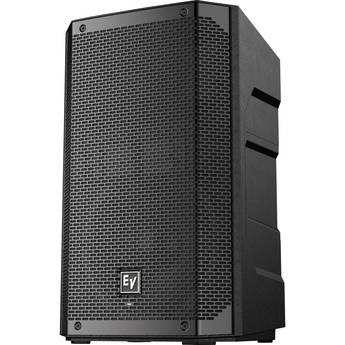

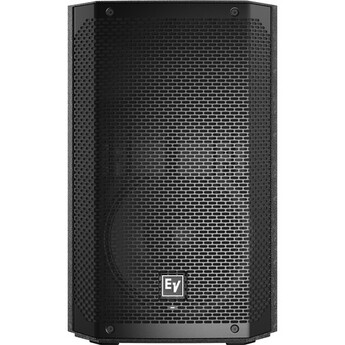

Electro-voice ELX200-10P-US 10" 2-Way 1200W Powered Speaker (Black, Single)
Model: F.01U.326.039








| Active or Passive | Active |
|---|---|
| Frequency Response | 59 Hz to 18 kHz (-3 dB) |
| Frequency Range | 53 Hz to 20 kHz (-10 dB) |
| Power Capacity | 1200 W |
| Maximum Sound Pressure Level (SPL) | 130 dB |
| Impedance | Not specified by manufacturer |
| Amplifier | Class-D |
| Crossover | 1.8 kHz |
| Low Frequency Driver | EVS-10M 10" / 254 mm |
| High Frequency Driver | 1" DH-1C titanium compression driver |
| High-Frequency Waveguide | Electro-Voice SST (Signal Synchronized Transducer) |
| Coverage | 90° x 60° |
| Enclosure Material | Polypropylene with powder-coated 18 AWG steel grille |
| Input Connections | 2 x XLR-1/4" combo jacks 2 x RCA coaxial (one L/R pair) |
| Output Connections | 1 x XLR 3-pin |

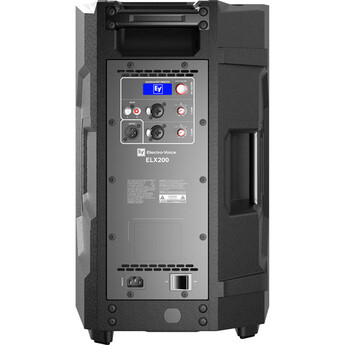

| Controls | Input 1 gain Input 2 gain Master volume |
| DSP | 4 x factory presets 5 x user presets 3-band EQ |
| Mounting | 3 x M10 threaded suspension points |
| Power Requirement | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 1.8 A |
| Dimensions (H x W x D) | 20.8 x 13.0 x 12.8" / 528.3 x 330.2 x 325.1 mm |
| Weight | 29.9 lb / 13.6 kg |
