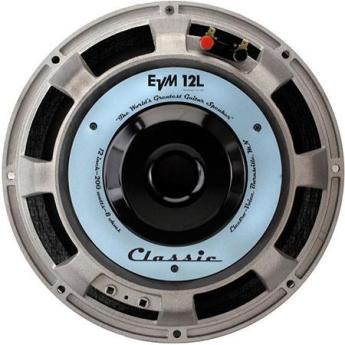

electro-voice Electro-Voice EVM12L Classic 12" Guitar Loudspeaker, 80-7000Hz Frequency Response, 200 Watts, 8 Ohms Impedance, 100 dB Sensitivity, 125 dB SPL, Single

Model #F.01U.273.862

Electro-Voice Warranty
Electro voice f 01u 273 862 1
Electro voice f 01u 273 862 1
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Product Back-Ordered

We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

General Information

Weight 8.6kg (18.95lbs)
Dimensions Frame Front Diameter: 309.6mm (12.18")
Baffle cutout diameter: 281mm (11.06")
Coil Diameter: 63.5mm (2.5")
Cone Diameter: 305mm (12")
Depth: 133.4mm (5.25")
System Power Handling 200//1000 Watts (Continuous/Program/Peak)
Max. SPL/1m (calc) 125 dB
Sensitivity 1 W/1 m 100 dB
Frequency Response (-10 dB) 80-7000 Hz
Mounting bolt circle diameter 293.7 mm (11.56")
Magnet diameter 190.5 mm (7.5")
Impedance 8 Ohms
Efficiency 5.90%
Product Highlights
  • Classic sound with road-ready reliability
  • Favorite of guitarists in all styles
  • High-performance heavy-duty design
  • 200W Power handling
  • Compatibility: Made For Guitar Amplifiers
  • Maximum Wattage: 200W-1000W
In The Box
  • Electro-Voice EVM12L Classic 12" Guitar Loudspeaker
  • Electro-Voice 3 Year Warranty
