Elac Debut 3.0 DB63 Bookshelf 2-Way Speakers (Walnut, Pair)
Model: DB63-WN








| Impedance | 6 Ohms |
|---|---|
| Magnetic Shielding | No |
| Inputs/Outputs | 5-Way Binding Post Pair Input |
| Crossover | High-Pass: 2000 Hz |
| Sensitivity | 87 dB |
| Speaker Configuration | 2-Way |
| Power Handling | 60 W RMS per Channel 80 W Peak per Channel |
| Recommended Amplifier Power | 20 to 140 W per Channel |

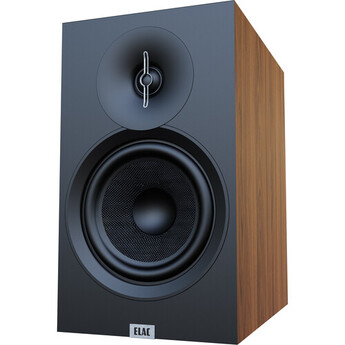

| Drivers | 1x 1" / 25.4 mm Aluminum Dome Tweeter (per Speaker) 1x 6.5" / 165.1 mm Woven Aramid-Fiber/Kevlar Cone Mid-Woofer (per Speaker) |
| Passive Radiators | No |
| Enclosure Type | Bass-Reflex |

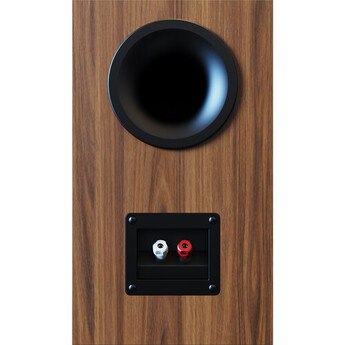

| Ports | 1x Rear-Firing (per Speaker) |
| Frequency Response | 42 Hz to 38 kHz (-6 dB) 50 Hz to 34 kHz (-3 dB) |
| Placement & Mounting Options | Tabletop/Bookshelf (with Included Hardware) |
|---|---|
| Weight | 17.3 lb / 7.8 kg (Each) |
| Dimensions | 7.7 x 13.3 x 11.7" / 195 x 339 x 298 mm (Each) |
| Grille | Cloth (Removable) |
| Cabinet Material | MDF |
| Color | Walnut Woodgrain |
| Environmental Resistance | No |
| Floor Contacts | Rubber Feet (Adjustable) |
| Box Dimensions (LxWxH) | 20.8 x 17.3 x 15.9" |
|---|---|
| Package Weight | 40.7 lb |
| Frequency Response | 42 Hz to 38 kHz (-6 dB) 50 Hz to 34 kHz (-3 dB) |
|---|---|
| Drivers | 1x 1" / 25.4 mm Aluminum Dome Tweeter (per Speaker) 1x 6.5" / 165.1 mm Woven Aramid-Fiber/Kevlar Cone Mid-Woofer (per Speaker) |
| Power Handling | 60 W RMS per Channel 80 W Peak per Channel |
| Speaker Configuration | 2-Way |
| Inputs/Outputs | 5-Way Binding Post Pair Input |
