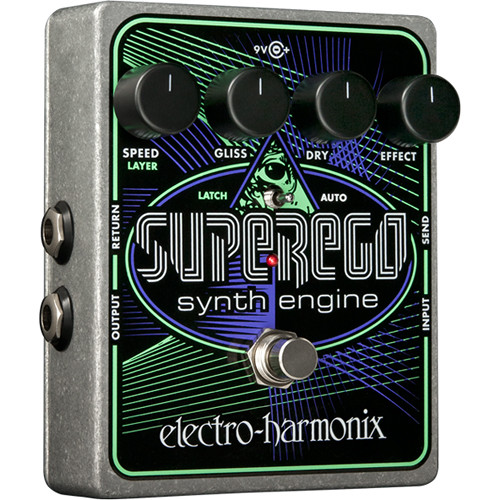

Electro-harmonix SUPEREGO Synth Engine Pedal
Model: SEGO








| Modes | Momentary Mode Latch Mode Auto Mode |
|---|---|
| Controls | 1 x Knob: Speed/Layer 1 x Knob: Gliss 1 x Knob: Dry 1 x Knob: Effect 1 x Footswitch: Bypass 1 x Switch: Toggle |
| Connectors | 1/4" phone jack, input 1/4" phone jack, output 1/4" phone jack, send 1/4" phone jack, return DC Power jack, 9 VDC |
| Impedance | Input: 2.2 MΩ Output: 200Ω (approx.) Send: < 5 kΩ Return: 2.2 MΩ |
| Current Requirements | 140 mA at 9 VDC |
| Power Supply | Maximum: 10.5 VDC |
| FCC Compliance | Class B digital device, pursuant to part 15 of the FCC Rules |
| Dimensions | 4.0 x 4.75 x 2.25" (102 x 121 x 89 mm) |
