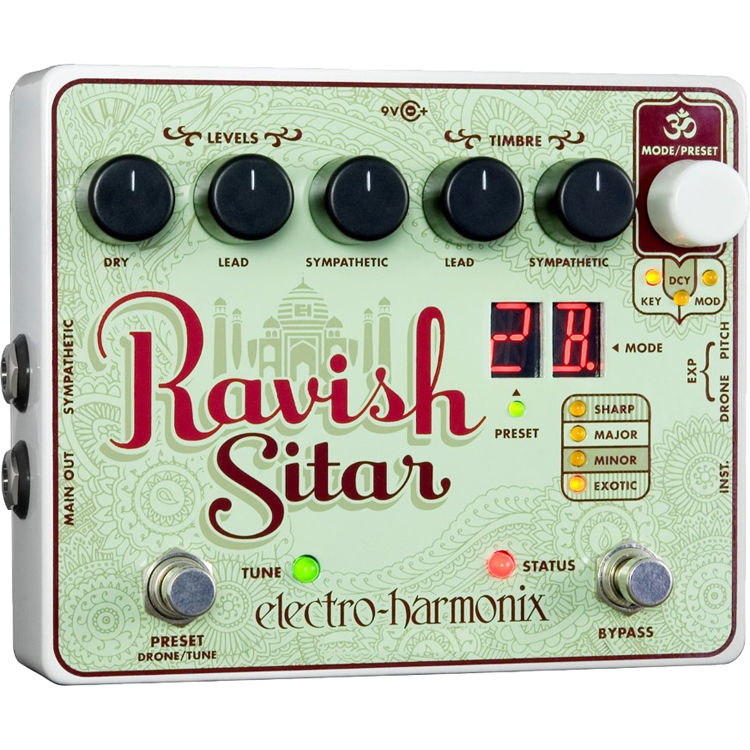

Electro-harmonix RAVISH Sitar Emulator
Model: RAVISH








| Package Weight | 2.2 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.1 x 6.6 x 3.3" |
| Audio Processor | Bit Resolution: 32 bits |
|---|---|
| ADC | Clipping Level: 4.9 Vp/p |
| Output Clipping Level | 4.7 Vp/p |
| Controls | 1 x Knob: Mode/Preset Encoder 3 x Knob: Level (Dry, Lead, and Sympathetic) 2 x Knob: Timbre (Lead and Sympathetic) 1 x Footswitch: Bypass 1 x Footswitch: Preset |
| Indicators | 10 x LED, Preset 1 x LED, Bypass FSW 1 x LED, Preset FSW |
| Sample Rate | 36082 Hz |
| Connectors | 1/4" phone jack, input 1/4" phone jack, output 1/4" phone jack, Sympathetic output 1/4" phone jack, Drone EXP input 1/4" phone jack, Pitch EXP input DC power jack, 9.6 VDC input |
| Power Requirements | 9 VDC, 160 mA |
| Power Supply | 9 VDC, 200 mA |
| Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) |
| Impedance | Input: 2.2 MΩ Output: 680 Ω |
| A/D and D/A Conversion | Bit Resolution: 24 bits |
