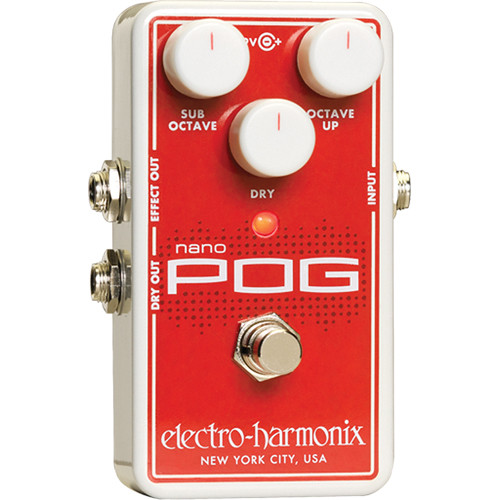

Electro-harmonix Nano POG Polyphonic Octave Generator Pedal
Model: NANOPOG








| Package Weight | 1.35 lb |
|---|---|
| Box Dimensions (LxWxH) | 6.3 x 5.7 x 3.2" |
| Audio Input Jack | 1/4" jack, 2 MΩ impedance |
|---|---|
| Controls | DRY knob SUB OCTAVE knob OCTAVE UP knob FOOTSWITCH |
| Power | Accepts 9 V Batteries, and works using supplied Electro-Harmonix 9.6DC-200 power supply. Plug the output of the supplied AC adapter into the 9 V power jack located at the top of the NANO POG. The NANO POG draws 25 mA at 9 VDC with a center negative plug. The NANO POG accepts Boss and Ibanez style AC adapters |
| Audio Output Jack | 1/4" jack, 700 Ω impedance (EFFECT out) 1/4" jack, 500 Ω impedance (DRY out) |
| LED | Yes |
