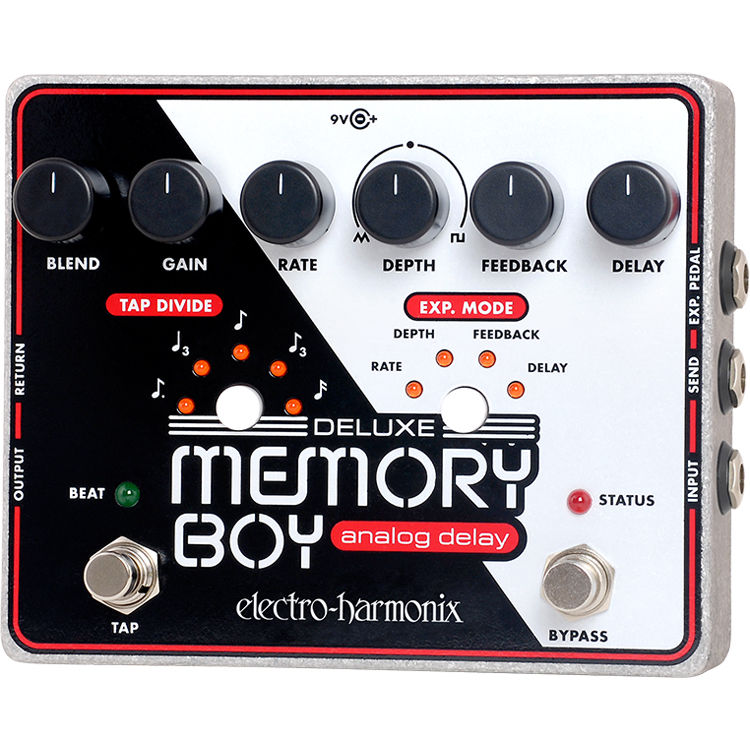

Electro-harmonix Deluxe Memory Boy Pedal
Model: DMBOY








| Package Weight | 2.05 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.2 x 6.6 x 3.3" |
| Connectors | 1/4" phone jack, EXP pedal input 1/4" phone jack, send input 1/4" phone jack, input 1/4" phone jack, return output 1/4" phone jack, output Power jack, 9 VDC input |
|---|---|
| Current Draw | 100 mA |
| Controls | 6 x knobs: Delay, Feedback, Depth, Rate, Gain, and Blend 2 x buttons: Tap Divide and Exp. Mode 2 x footswitches: Tap and Bypass |
| Input Impedance | Input: 1 MΩ Return: 2 MΩ |
| Dimensions | 5.67 x 4.69 x 2.36" (144 x 119 x 60 mm) |
| Maximum Power | 12 VDC |
| Indicators | 1 x LED green, Beat 1 x LED red, Status 5 x LED, Tap Divide 4 x LED, Exp. Mode |
