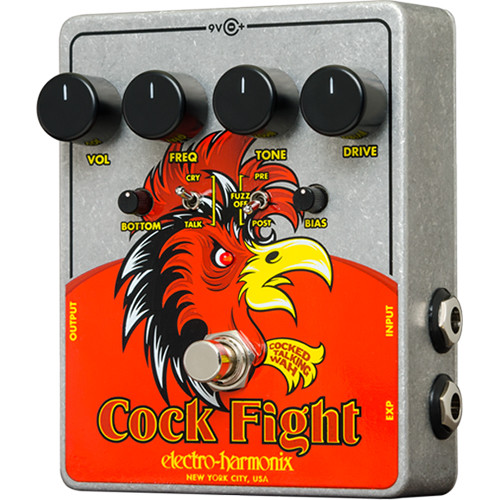

Electro-harmonix Cock Fight - Cocked Talking Wah Pedal with Fuzz
Model: COCKFIGHT








| Package Weight | 1.65 lb |
|---|---|
| Box Dimensions (LxWxH) | 7.3 x 6 x 3.2" |
| Impedance | Input: 2 MOhms Output: 470 Ohms |
|---|---|
| Power Requirements | Battery: 9V (alkaline recommended) External Power Supply: 9 VDC, 200 mA, barrel-type connector, center-negative |
| Controls and Indicators | VOL Knob: Controls master volume FREQ Knob: Controls frequency of the filter TONE Knob: Blends between dark and bright fuzz DRIVE Knob: Controls amount of fuzz BOTTOM Knob: Controls low-frequency boost/cut BIAS Knob: Controls the transistor bias voltage CRY/TALK Toggle Switch: Switches wah modes PRE / FUZZ OFF / POST TOGGLE Switch: Changes series position of fuzz Bypass Footswitch: Instantiates unit Status Indicator LED: Lit when active |
| Dimensions | 4.0 x 4.75 x 2.25" / 102 x 121 x 89 mm |
| Current Draw | 35 mA |
| Connectors | Input: 1 x 1/4" jack Output: 1 x 1/4" jack Expression Pedal: 1 x 1/4" jack, TRS Power: Barrel-type connector, center-negative |
