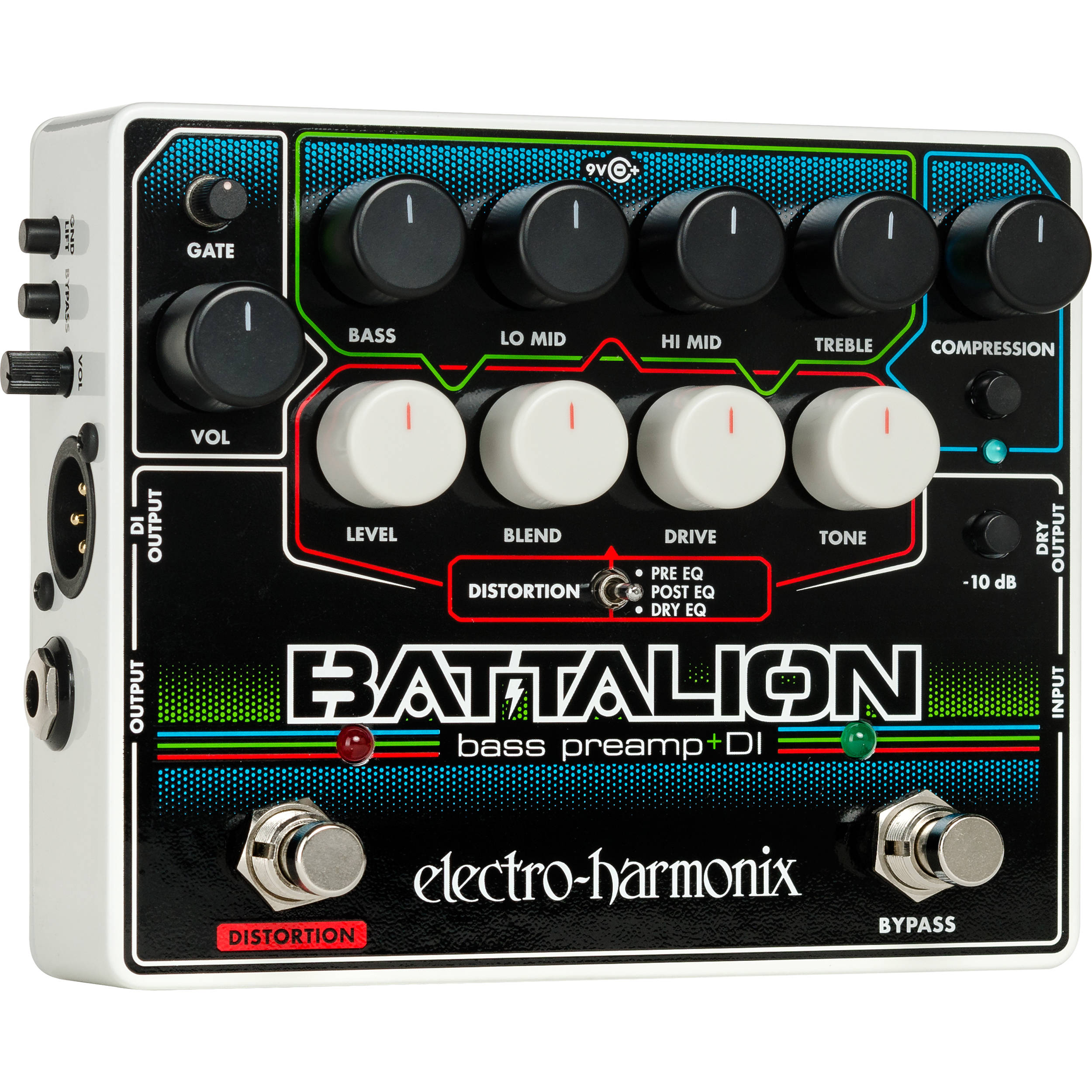

Electro-harmonix Battalion Bass Preamp and DI Pedal
Model: BATTALION








| Pedal Type | Bass preamp and DI box |
|---|---|
| Inputs | 1 x 1/4" |
| Outputs | 2 x 1/4" 1 x XLR |
| Bypass | True bypass |
| Switches | Bypass Distortion on/off Distortion position Pad (-10 dB) Compression Ground lift XLR bypass |
| Controls | EQ: Bass, Lo Mid, Hi Mid, Treble Distortion: Level, Blend, Drive, Tone Compression Gate (threshold) Volume XLR Vol |
| Impedance | 2.2 MOhms (1/4" input) 220 Ohms (1/4" output) |
| Equalizer Center Frequency | Bass: low shelf at 200 Hz Lo Mid: peak at 280 Hz Hi Mid: peak at 750 Hz Treble: high shelf at 2 kHz |
| Power Requirements | 9.6 VDC, 200 mA power supply |
| Dimensions | 4.8 x 5.8 x 2.5" / 120.7 x 146.1 x 63.5 mm |
| Weight | 1.2 lb / 0.5 kg |
