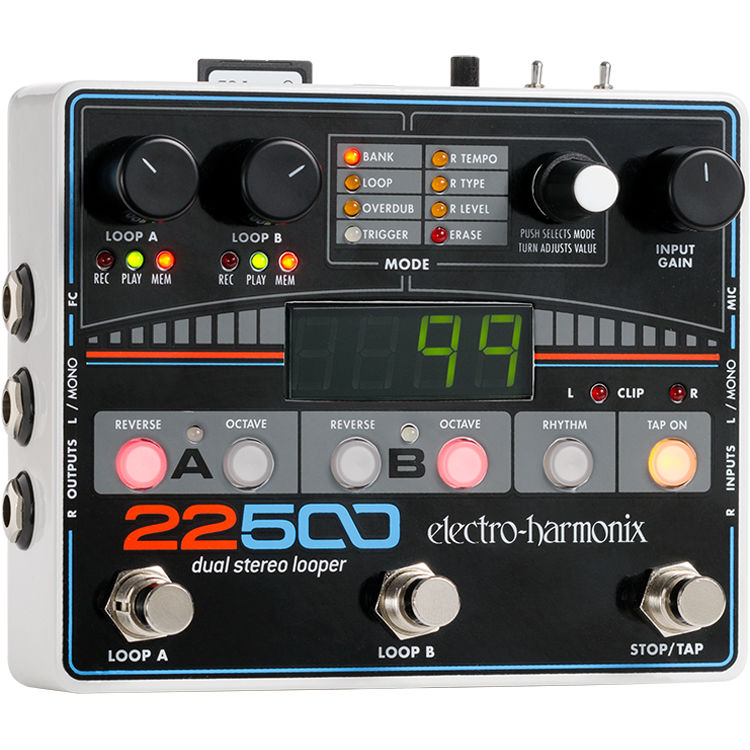

Electro-harmonix 22500 Dual Stereo Looper Pedal
Model: 22500








| Package Weight | 1.95 lb |
|---|---|
| Box Dimensions (LxWxH) | 8 x 6.6 x 3.3" |
| Memory Specifications | Type: SDHC Capacity: 4-32GB Speed Class: 4 or above recommended 100 x banks per card, with two loop channels per bank |
|---|---|
| Approximate Record Times | 4 GB = 6 hours 8 GB = 12 hours 16 GB = 24 hours 32 GB = 48 hours Maximum Record Time for a Single Loop: 6 hours (regardless of card size) |
| Controls | Switches 1 x +45 VDC phantom power on/off 1 x mic or instrument input 1 x loop A footswitch 1 x loop B footswitch 1 x stop/tap/rhythm footswitch Buttons |
| LED Indicators | REC, PLAY, MEM: 3 x LEDS per loop channel; indicates loop status TRIGGER: 1 x LED CLIP L/R: 2 x LEDs MODE: 8 x LEDs |
| Inputs | 1 x XLR 1 x 1/4" mono 1 x 1/4" foot controller jack (foot controller available separately) |
| Display | 4-digit LED display |
| Power Supply | Output: 9.6 VDC, 500 mA Battery operation not supported |
| Dimensions | 4.8 x 5.8 x 2.5" / 12.1 x 14.6 x 6.4 cm |
| Ports | 1 x USB Type-B 1 x SDHC |
| Outputs | 2 x 1/4" L/R (left is mono) |
