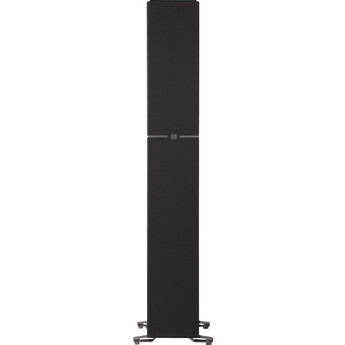

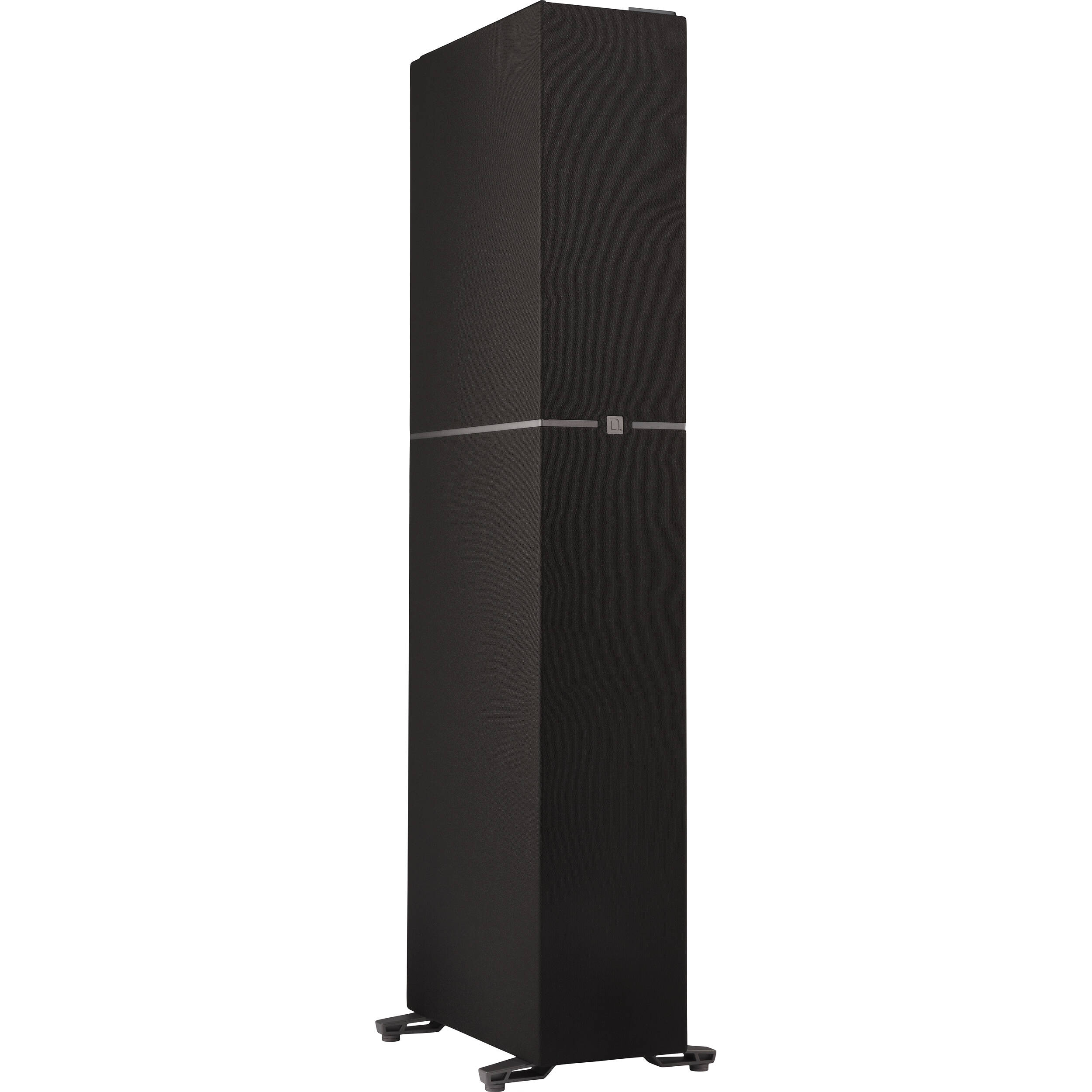

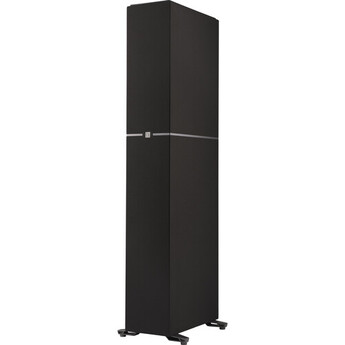

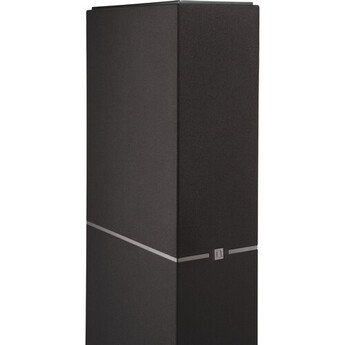

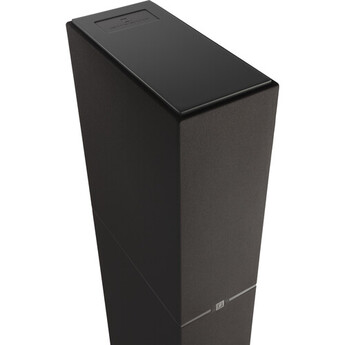

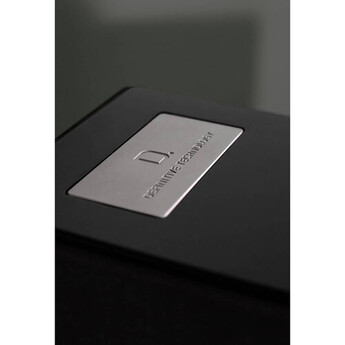

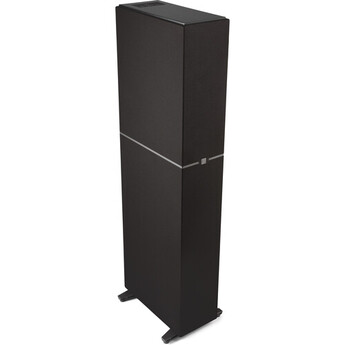

Definitive technology Dymension DM70 3-Way Floorstanding Speaker
Model: 300569-01-00-101








| Input Power | 120 VAC, 60 Hz |
|---|---|
| Subwoofer Power Rating | 250 W |

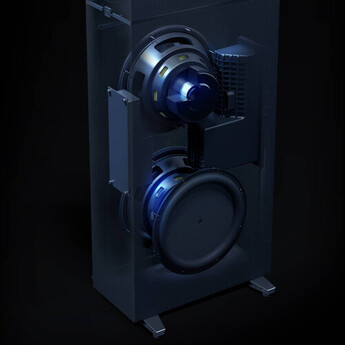

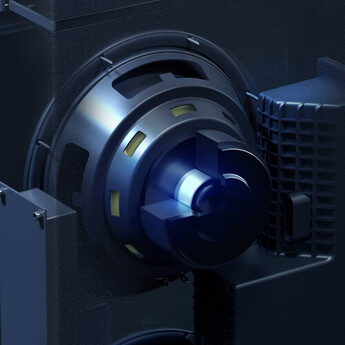

| Subwoofer Drivers | 1x 10" / 25.4 cm |
| Passive Radiators | 2x 10" / 25.4 cm |
| Amplifier Class | Class-D |
| Phase Adjustment | Yes |

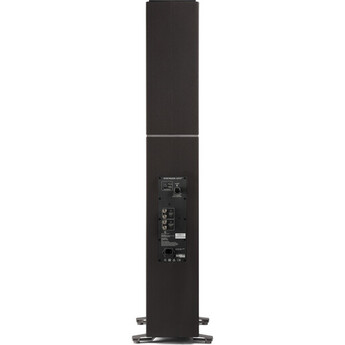

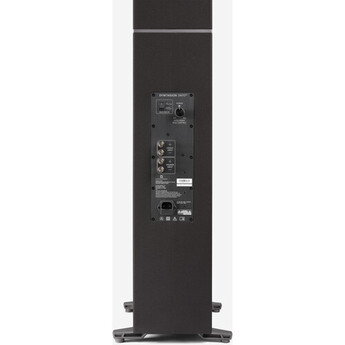

| Inputs/Outputs | 1x Binding Post Pair Input |
|---|---|
| Sensitivity | 90 dB |
| Channel Configuration | 2.1-Channel |
| Speaker Configuration | 3-Way |
| Power Handling | 50 to 300 W |
| Recommended Amplifier Power | 50 to 300 W |

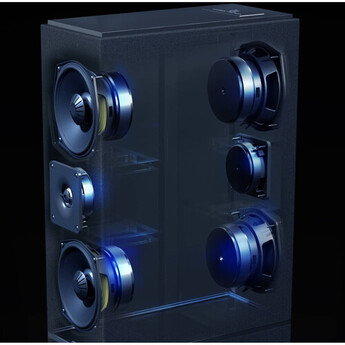

| Drivers | 2x 1" / 25.4 mm Aluminum Tweeter 4x 5.25" / 133.35 mm Composite/Polymer Cone Mid-Woofer |
| Passive Radiators | Yes |
| Frequency Response | 25 Hz to 30 kHz (-10 dB) 30 Hz to 23 kHz (-3 dB) |
| Impedance | 4 Ohms |
| Placement & Mounting Options | Floorstanding |
|---|---|
| Color | Black |
| Weight | 74.1 lb / 33.6 kg |
| Dimensions | 47.4 x 16 x 11.3" / 1204 x 407 x 287 mm |
| Grille | Cloth |
| Floor Contacts | Carpet Spikes, Silicone Pad |
| Environmental Resistance | No |
| Box Dimensions (LxWxH) | 51 x 20 x 16" |
|---|---|
| Package Weight | 91 lb |
| Subwoofer Power Rating | 250 W |
|---|---|
| Inputs/Outputs | 1x Binding Post Pair Input |
| Frequency Response | 25 Hz to 30 kHz (-10 dB) 30 Hz to 23 kHz (-3 dB) |
| Drivers | 2x 1" / 25.4 mm Aluminum Tweeter 4x 5.25" / 133.35 mm Composite/Polymer Cone Mid-Woofer |
| Power Handling | 50 to 300 W |
| Speaker Configuration | 3-Way |
| Channel Configuration | 2.1-Channel |
| Subwoofer Drivers | 1x 10" / 25.4 cm |
