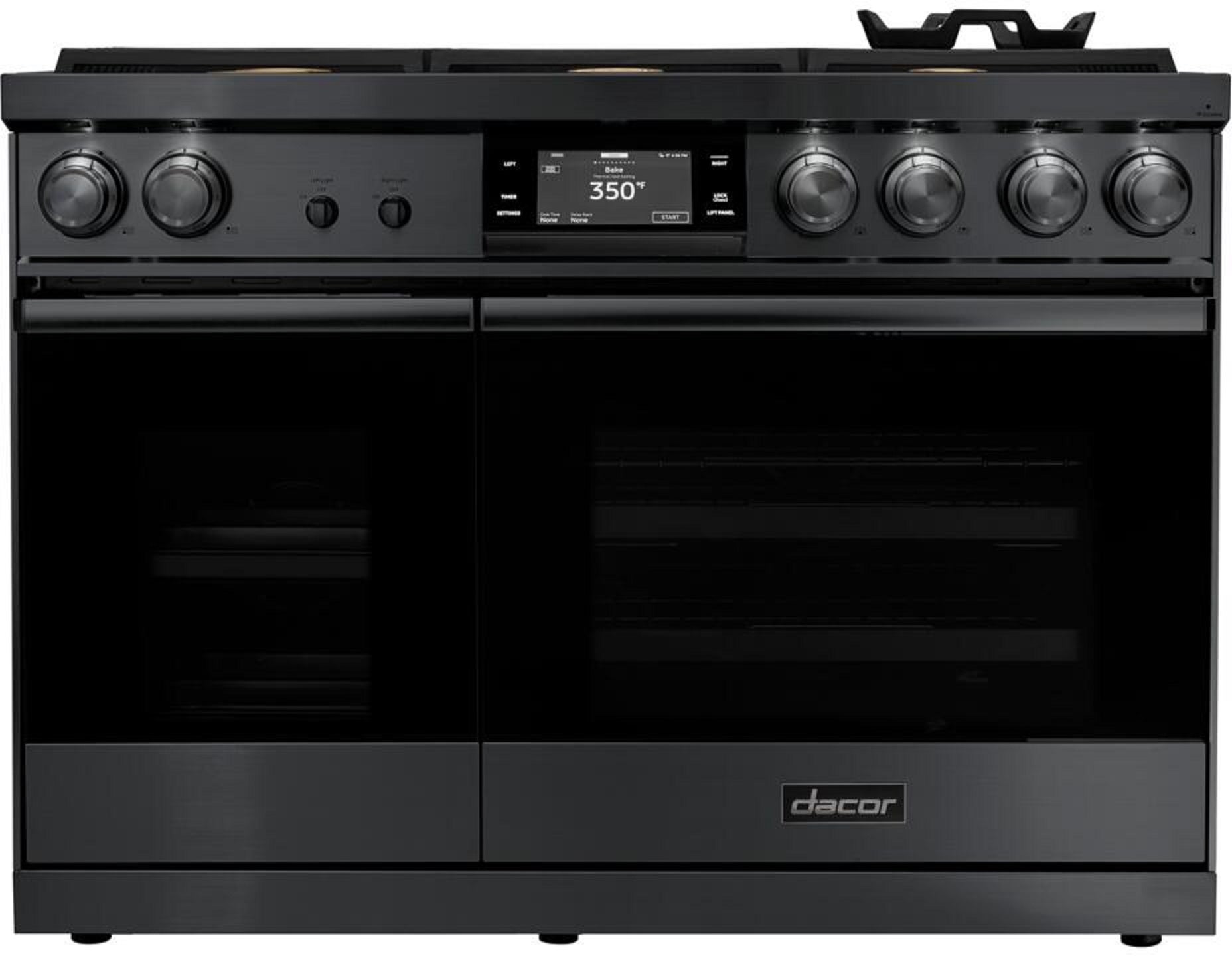

Dacor 48" Graphite Stainless Steel Natural Gas Sealed Burner Range - Convection

Model: DOP48M86DLM

Dacor Warranty
Dacor dop48m86dlm 1
Dacor dop48m86dlm 1
Dacor dop48m86dlm 2
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • Guaranteed Brand New Products
  • All Products Sold by Manufacturer Authorized Retailers
  • 30 Day Return Policy
  • Free Shipping
    No Additional Fees

Name your price


MSRP: $13,499.00 ?


Your Chances of Success
lowest price online $
average price online $

Your chances of success

If the product is not ready to ship right away, we will contact you prior to processing payment for your approval of the shipping timeline.



CA Prop. 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm -

Tech Specs

Convection Power (Watts) 1300
Broil Power (Watts) 4400
Bake Power (Watts) 3000
Burner Set 6 Output 22000 BTU
Burner Set 6 QTY 1
Burner Set 5 Output 9005 BTU
Burner Set 5 QTY 1
Fuel Type Natural Gas
Capacity 4.8 cu.ft.
Secondary Oven Capacity 1.8
Voltage 240
Amps 50 Amps
Burner Set 1 QTY 1
Burner Set 1 Output 16005 BTU
Burner Set 2 QTY 1
Burner Set 2 Output 18005 BTU
Burner Set 3 QTY 1
Burner Set 3 Output 16005 BTU
Burner Set 4 Output 16005 BTU
Burner Set 4 QTY 1


Number of Slide Racks 2
Installation Type Freestanding
Burner Type Sealed Burner
Number of Burners 6 Burners
Cooktop Control Type Knobs
Broiler Element Location Top
Lighting Type Brightvue
Continuous Grates Yes
Items Included Power Cord
Use Rating Residential


Weight 425
Appliance Color Graphite Stainless Steel
Type Double


Cooking Surface Features Child/Control Lock, Continuous Grates, Digital Temperature Display, Hot Surface Indicator Light, Timer, Wifi Connection, Wok Burner
Oven Features Convection, Delay Start, Digital Clock, Digital Temperature Display, Electronic Display, Freestanding, Home Automation Capable, Interior Oven Light, Proofing, Steam Clean, Timer, Viewing Window, Wifi Connection


Width 47.88"
Height 36.13"
Cutout Width 48
Cutout Depth 24
Depth 27.5"
Product Description

Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.


Steam-Assist Oven
For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with with a light, fluffy center with a flaky crust.

Superior Steam Generation
Utilizing an external steam generator, quickly and effectively deliver the right amount of steam at the right time for that perfect culinary result.

Dual Four-Part Pure Convection
Superior consistency and zero flavor transfer with Dual 4-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.

Powerful Broiling
Even browning and powerful searing with a 10 Pass, 4400W broiler.

SimmerSear Burners
Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.

Black and Brass Burner Caps
Comes with two finish options for a customized look

True Centerpiece of the Kitchen
Every line, every detail designed intentionally to inspire creativity.

Illumina Knobs
Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.

Automatically reignites burners if they are accidentally extinguished.

Brightvue Interior Lighting
A combination of seamlessly integrated LED and halogen lights fill the oven with rich illumination.

Wi-Fi-Enabled 7" LCD Control Panel
Automatically tilting, 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.

Chef Mode
Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures and timing.

A faster, safer, better way to clean. Cleans with the versatile power of built-in steam capabilities, rather than extreme heat or harsh chemicals.

SmartThings Integration
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.

Auto Connected Hood
Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and increases the speed as necessary, with the use of a temperature sensor.

Product Highlights
  • Width: 47.88"
  • Height: 36.13"
  • Depth: 27.5"
  • Capacity: 4.8 cu. ft.
  • Fuel Type: Natural Gas
