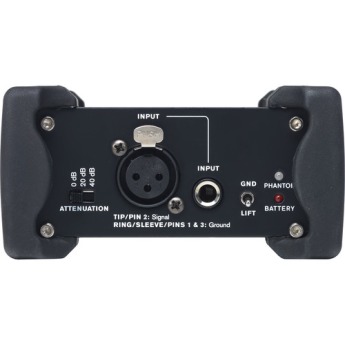

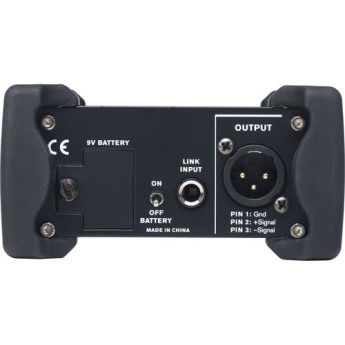

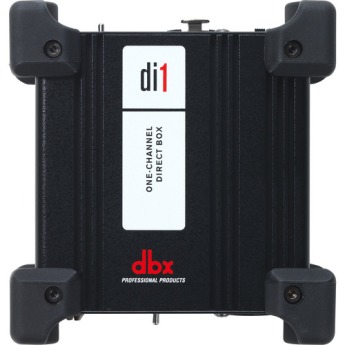

Dbx DI1 Active Direct Box
Model: DI1








| Type | Active |
|---|---|
| Input Connections | 2 x parallel 1/4" unbalanced TS 1 x XLR unbalanced (pin 2 hot, pins 1 and 3 ground) Impedance: >250 kOhms |
| Output Connectors | 1 x XLR balanced Impedance : >600 Ohms |
| Input Level | Max: +12 dB (at 0 dB), +32 dB (at -20 dB), +52 (at -40 dB) |
| Frequency Response | 10 Hz to 70 kHz, +0/-3 dB |
| Noise | |
| Power | Phantom power: 18 to 48 VDC 9V battery |
| Dimensions (WxDxH) | 5.9 x 4.9 x 2.7" / 150 x 124 x 69 mm |
| Weight | 1 lb / 0.4 kg |
