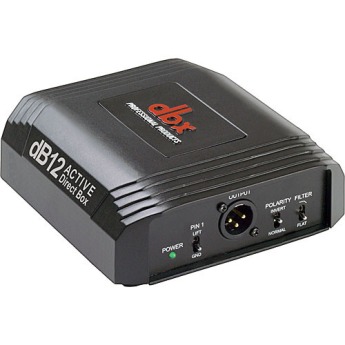

dbx DB12 - Direct Box
Model: DBXDB12V








| Package Weight | 1.9 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.3 x 7.7 x 2.5" |
| Output Connectors | 1 x XLRm1 x 1/4" TS phone |
|---|---|
| Input Level | +10dBu (0dB pad)+30dBu (20dB pad)+50dBu (40dB pad) |
| Output Level | +8dBu into 600Ω |
| Controls | 1 x Input Selector Switch1 x Polarity Switch1 x Low-Pass Filter Switch1 x Ground Lift Switch |
| Frequency Response | 20Hz to 20kHz, +/-3dB30Hz to 20kHz, +0/-1dB |
| Type | Active |
| Power | +20 to +48 volts DC phantom power ( |
| Dimensions (WxDxH) | 5.44 x 5.82 x 2.20" (138 x 148 x 56mm) |
| Weight | 1.4 lbs (0.65 kg) |
| Specialties | Premium shielded custom dbx transformer |
| Noise | |
| Input Connections | 1 x 1/4" TS phone |
