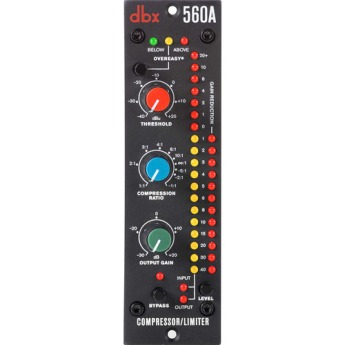

dbx 500 Series 560A Compressor/Limiter

Model #DBX560A

DBX Warranty
Image coming big
Image coming big
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • Guaranteed Brand New Products
  • All Products Sold by Manufacturer Authorized Retailers
  • 30 Day Return Policy
  • Free Shipping
    No Additional Fees

Product Back-Ordered

We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

General Information

Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance 40 kOhms balanced, 20 kOhms unbalanced
Maximum Input Level +22 dBu
CMRR >40 dB; typically >55 dB at 1 kHz
Output Type Electronically balanced/unbalanced, RF filtered
Output Impedance Balanced 30 ohms, unbalanced 15 ohms
Maximum Output Level +22 dBu
Frequency Response 20 Hz - 20 kHz, + 0/-0.5 dB; 0.5 Hz - 100 kHz, +0/-3 dB
Noise
THD+N
Dynamic Range >119 dB
Gain Adjustment Range Variable from -20 dB to +20 dB
Compressor Threshold -40 dBu to +20 dBu
Threshold Selectable OverEasy or Hard Knee
Ratio Variable 1:1 to infinity:1 thru to -1:1; 60 dB maximum compression
Attack Time Program-Dependent; typically 15 ms for 10 dB, 5 ms for 20 dB, 3 ms for 30 dB
Release Time Program-Dependent; typically 8 ms for 1 dB, 80 ms for 10 dB, 400 ms for 50 dB; 125 dB/Sec Rate
Power Requirements +/- 16 VDC
Current Draw 60 mA per power rail
Power Draw 1.92 W
Rack Compatibility 500 Series compatible power-frame
Rack Space 1 slot
Dimensions (H x W x D) 5.25 x 1.5 x 6" (13.34 x 3.81 x 15.24 cm)
Weight 1.3 lb (0.59 kg)
