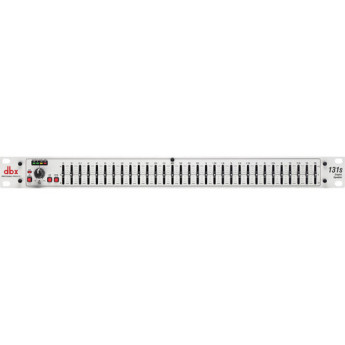

dbx 131s - Graphic EQ
Model: 131S EQ
DBX Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 6.05 lb |
Box Dimensions (LxWxH) | 21.9 x 11.3 x 2.5" |
General Information
Frequency Bands | 31 |
Bandwidth | 1/3-octave |
Range (Boost/Cut) | +/-6dB or +/-12 dB, switchable |

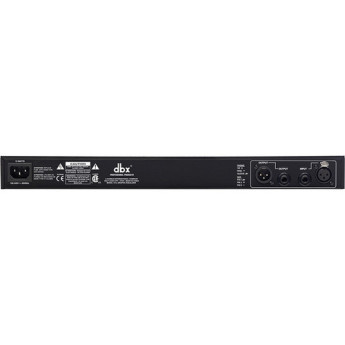

Inputs | 1 x XLR (pin 2 hot)1 x 1/4" TRS phone 1 Please Note: Electronically balanced/unbalanced, RF filtered close |
Input Impedance | 40kΩ balanced, 20kΩ unbalanced |
Maximum Input Level | >+21dBu balanced or unbalanced |
Outputs | 1 x XLR (pin 2 hot)1 x 1/4" TRS phone 2 Please Note: Electronically balanced/unbalanced, RF filtered close |
Output Impedance | 100Ω balanced, 50Ω unbalanced |
Maximum Output Level | >+21dBu balanced/unbalanced into 2kΩ or greater>+18dBm balanced/unbalanced into 600Ω |
Frequency Response | FR: 50kHz, +0.5/-3.0dBBandwidth: 20Hz to 20kHz, +0.5/-1.0dB |
Filter Type | Graphic, constant Q |
Noise | SNR: >95dB typical |
THD + N | |
Crosstalk | |
CMRR | >40dB, typically >55dB @ 1kHz |
Switches | EQ Bypass - bypasses the graphic equalizer section in the signal path Low Cut - activates the 50Hz 12dB/octave high-pass filter Range - selects either +/- 6dB or +/-12dB slider boost/cut range |
Power Requirements | 100~240VAC 50/60Hz15W power consumption |
Dimensions (WxHxD) | 19 x 6 x 1.75" (483 x 152 x 45mm) |
Weight | 4.8 lb (2.2kg) |
Specialties | 20mm non-conductive sliders |
Dynamic Range | >112dB typical |
Number of Channels | Single |
- Single Channel
- 31-Band
- 1/3 Octave
- Switchable Boost/Cut Range
- 20mm Sliders
- 4-Segment LED Ladders
- dbx 131s - Graphic EQ
- AC Power Cable
- Two (2) Year Warranty
