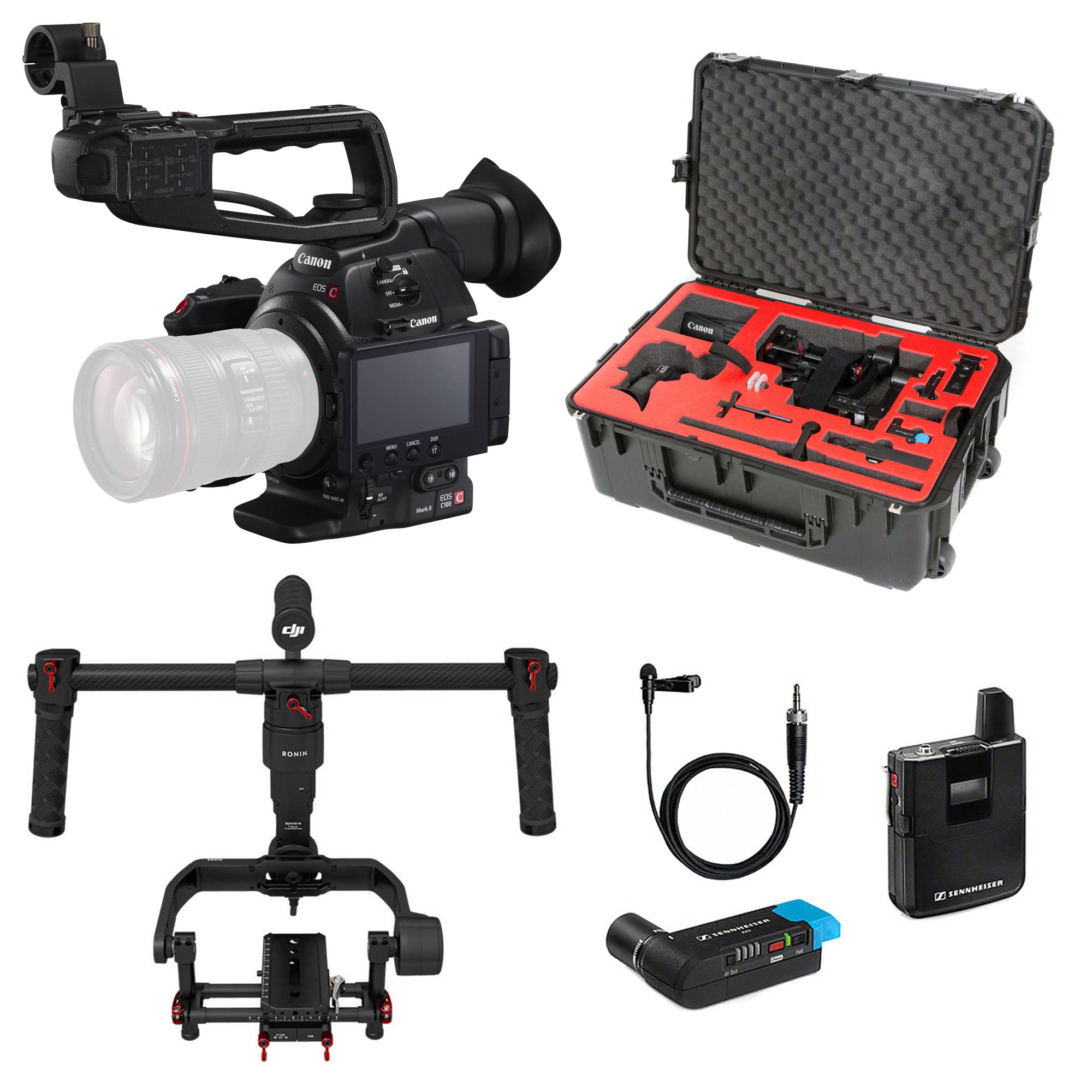

Canon EOS C100MK II Wedding/Documentary Kit
Model: 0202C029








| Diopter Adjustment | +2.0 to -5.5 |
|---|---|
| Type | 0.24" (0.61 cm) color 960x540 resolution 1,560,000 pixels |
| Adjustments | Brightness, Contrast, Color, and Backlight |
| Frame Rates | AVCHD 1920 x 1080p: 59.94. 50, 23.98 1920 x 1080i: 59.94, 50 1920 x 1080PF: 29.97, 25 MP4 1920 x 1080p: 59.94, 50, 29.97, 25, 23.98 1280 x 720p: 29.97, 25, 23.98 640 x 360p: 29.97, 25, 23.98 |
|---|---|
| Recording Format | Compression: MPEG-4, AVC/H.264, MP4 Maximum bit rate: AVCHD 28Mb/s, MP4 35Mb/s |
| Signal System | NTSC and PAL |
| Assistant Software | Desktop: Windows (32- or 64-bit): 8, 7, XP SP3 Mac OS X: 10.9 or above Mobile: iOS 7.0 or later |
|---|
| Frequency | 2.4 GHz |
|---|---|
| Expandability | D-Bus receiver supported |
| Angular Vibration Range | ±0.02° |
|---|---|
| Mechanical Endpoint Range | Pan Axis Control: 360°/s Tilt Axis Control: +105° /-165°/s Roll Axis Control: ± 110°/s |
| Maximum Controlled Rotation Speed | Pan Axis: 90°/s Tilt Axis: 100°/s Roll Axis: 30°/s |
| Load Weight (Reference Value) | 8 lb / 3.6 kg |
| Controlled Rotation Range | Pan Axis Control: 360°/s Tilt Axis Control: +105° /-165°/s Roll Axis Control: ± 25°/s |
| Box Dimensions (LxWxH) | 18.8 x 12.5 x 11.5" |
|---|---|
| Box Dimensions (LxWxH) | 12.7 x 6.8 x 3.0" |
| Box Dimensions (LxWxH) | 14.5 x 12.0 x 12.0" |
| Maximum Recording Time | AVCHD 8GB SD Memory Card 28 Mb/s 1920 x 1080: 35 minutes 24 Mb/s 1920 x 1080: 40 minutes 17 Mb/s 1920 x 1080: 1 hour 7 Mb/s 1440 x 1080: 2 hours 20 minutes 16GB SD Memory Card 28 Mb/s 1920 x 1080: 1 hour 15 minutes 24 Mb/s 1920 x 1080: 1 hour 25 minutes 17 Mb/s 1920 x 1080: 2 hours 5 minutes 7 Mb/s 1440 x 1080: 4 hours 45 minutes 32GB SD Memory Card 28 Mb/s 1920 x 1080: 2 hours 30 minutes 24 Mb/s 1920 x 1080: 2 hours 55 minutes 17 Mb/s 1920 x 1080: 4 hours 10 minutes 7 Mb/s 1440 x 1080: 9 hours 35 minutes 64GB SD Memory Card 28 Mb/s 1920 x 1080: 5 hours 24 Mb/s 1920 x 1080: 5 hours 55 minutes 17 Mb/s 1920 x 1080: 8 hours 20 minutes 7 Mb/s 1440 x 1080: 19 hours 10 minutes 128GB SD Memory Card 28 Mb/s 1920 x 1080: 10 hours 10 minutes 24 Mb/s 1920 x 1080: 11 hours 55 minutes 17 Mb/s 1920 x 1080: 16 hours 45 minutes 7 Mb/s 1440 x 1080: 38 hours 25 minutes MP4 8GB SD Memory Card 35 Mb/s 1920 x 1080: 30 minutes 24 Mb/s 1920 x 1080: 40 minutes 17 Mb/s 1920 x 1080: 1 hour 4 Mb/s 1280 x 720: 4 hours 20 minutes 3 Mb/s 640 x 360: 5 hours 40 minutes 16GB SD Memory Card 35 Mb/s 1920 x 1080: 60 minutes 24 Mb/s 1920 x 1080: 1 hour 25 minutes 17 Mb/s 1920 x 1080: 2 hours 5 minutes 4 Mb/s 1280 x 720: 8 hours 40 minutes 3 Mb/s 640 x 360: 11 hours 25 minutes 32GB SD Memory Card 35 Mb/s 1920 x 1080: 2 hours 24 Mb/s 1920 x 1080: 2 hours 55 minutes 17 Mb/s 1920 x 1080: 4 hours 10 minutes 4 Mb/s 1280 x 720: 17 hours 20 minutes 3 Mb/s 640 x 360: 22 hours 55 minutes 64GB SD Memory Card 35 Mb/s 1920 x 1080: 4 hours 24 Mb/s 1920 x 1080: 5 hours 55 minutes 17 Mb/s 1920 x 1080: 8 hours 20 minutes 4 Mb/s 1280 x 720: 34 hours 45 minutes 3 Mb/s 640 x 360: 45 hours 55 minutes 128GB SD Memory Card 35 Mb/s 1920 x 1080: 8 hours 24 Mb/s 1920 x 1080: 11 hours 55 minutes 17 Mb/s 1920 x 1080: 16 hours 45 minutes 4 Mb/s 1280 x 720: 69 hours 30 minutes 3 Mb/s 640 x 360: 91 hours 55 minutes |
|---|---|
| Recording Media | 2 x SD/SDHC/SDXC card slots File system: FAT 32 |
| Simultaneous REC./Relay REC. | Yes |
| ND Filters | Clear, 2 stops (1/4), 4 stops (1/16), 6 stops (1/64) |
|---|---|
| Lens Mount | Canon EF mount with EF contacts |
| Peripheral Illumination Correction | On supported Canon EF, EF-S, and Cinema lenses |
| Iris Dial | Manual setting in 1/2-step increments, 1/3-step increments, or fine Push auto iris control |
| Remote Terminal | LANC compatible |
|---|---|
| Headphone Jack | 1 x 3.5mm stereo mini-jack |
| Audio Input | 2 x Balanced 3-pin XLR on top handle unit 1 x 3.5 mm input jack on main body |
| Timecode | Embedded in HDMI output |
| HDMI Output | 1 x Type A |
| USB | 1 x Mini-B USB 2.0 |
| Sensor | Super 35mm CMOS (24.6 x 13.8 mm) (28.2 mm diagonal) |
|---|---|
| Total Pixels | Approx. 9.84 megapixels (4206 x 2340) |
| Effective Pixels | Approx. 8.29 megapixels (3840 x 2160 pixels) |
| Processor | DIGIC DV 4 |
| Color Filter | RGB Primary Color Filter (Bayer Array) |
| Dimensions (W x H x D) | Body with Thumb Rest: 5.3 x 6.7 x 5.1 in (13.5 x 17 x 12.9 cm) Body with Grip: 7.2 x 6.7 x 5.1 in (18.2 x 17 x 12.9 cm) W/ Thumb Rest and handle: 5.6 x 11.1 x 9.3 in (14.2 x 28.1 x 23.6 cm) W/ Grip and handle: 7.2 x 11.1 x 9.3 in (18.2 x 28.1 x 23.6 cm) |
|---|---|
| Weight | 5.07 lb / 2.3 kg (fully loaded with handlebar) |
| Dimensions (W x D x H) | 19.7 x 8.3 x 16.5" / 500 x 210 x 420 mm |
| Operating Temperature | -5 to 122°F / -15 to 50°C |
| Power Requirements | 4S Ronin-M Battery |
| Supported Camera Dimensions | Maximum depth at center of mass on camera base plate: 4.7" / 120 mm Maximum height measured from top of camera base plate: 7.7" / 195 mm Maximum width: 6.3" / 160 mm |
| Control Modes | Underslung Mode Upright Mode Briefcase Mode |
| Power Supply | 7.4 V DC (battery pack: BP-955) 8.4 V DC (DC IN) |
| Operating Temperature | Performance requirements 32 - 104°F (0 - 40°C), 85% relative humidity Operating requirements: 32 - 113°F (0 - 45°C), 60% relative humidity |
| Weight | Body only: approx. 2.2 lb (1.0 kg) Grip: approx. 8.1 oz (230 g) BP-955 Battery: 7.8 oz (220 g) |
| White Balance | Auto, Kelvin, Daylight, Tungsten, Set A, Set B White balance shift is available within Presets (-9 to +9) |
| Waveform Monitor | 2 Modes (Standard and RGB Component) |
| Minimum Subject Illumination | 59.94 Hz: 0.3 lux 50 Hz: 0.25 lux |
| Language Support | English, Japanese, Simplified Chinese, German, Spanish, French, Italian, Polish, Russian, Korean |
| Settings | Manual One-Shot AF Continuous AF |
|---|---|
| Autofocus | AF is dependent on interchangeable lenses Dual Pixel CMOS AF with Canon EF, EF-S, and Cinema lenses |
| Exposure Modes | Manual Push Auto Iris Control (metering system selection/AE shift possible) |
|---|---|
| Shutter Angle Settings | 59.94i: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25 PF30: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25 23.98p/PF24: 360, 345.6, 288, 240, 180, 172.8, 144, 120, 90, 86.4, 72, 60, 45, 30, 22.5, 15, 11.25 50i: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25 PF25: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25 |
| Shutter Speed Range | 59.94i/: 1/60 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15, 1/30; CS: 59.94 Hz - 250.51 Hz PF30: 1/30 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15; CS: 29.97 Hz - 250.51 Hz 23.98p/PF24: 1/24 to 1/2000 in 1/4or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 23.98 Hz - 250.51 Hz 50i: 1/50 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12 1/25; CS: 50.00 Hz - 250.51 Hz PF25: 1/25 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 25.00 Hz - 250.51 Hz |
| Shutter Modes | OFF, ISO Speed, Shutter Angle, Slow Shutter, or Clear Scan Speed setting can be set in 1/2 or 1/3 stop increments |
| ISO Range | 320 to 102,400 in 1/3-step increments |
| Gain | Normal: -6 to 30 dB TBD Fine: 0 to 24 dB, in 0.5 dB increments |
| Metering Modes | Standard Center Weighted, Spotlight, Backlight |
| Motor Type | 3 x Brushless |
|---|---|
| Working Current | Static Current: 300 mA (at 16 VDC) Dynamic Current: 600 mA (at 16 VDC) Locked Motor Current: 10 A maximum (at 16 VDC) |
| Sensors | Independent IMU module Temperature sensor |
| Processing | 32-bit DSP processor |
| Adjustments | Brightness, Contrast, Color, Sharpness, and Backlight (Normal or Bright) |
|---|---|
| Type | 3.5" / 8.9 cm, OLED 640 x 480 922,000 pixels |
| Wireless | 2.4 GHz for transmitter (remote controller) Bluetooth 4.0 |
|---|---|
| Wired | 2 x 12 VDC regulated PowerTap 1 x USB power output (500 mW) 1 x DJI Lightbridge interface |
| Limiter | Available |
|---|---|
| Headphone Output Level | 16 Settings; volume is muted at lowest setting |
| Phantom Power | +48 V |
| Built-in Speaker | Yes; 16 level settings |
| Tone | 1 KHz tone available; -12, -18, or -20 dB |
| Audio Level Control | Infinity to +18 dB, Automatic Separate controls for internal and externally connected microphones |
| Audio Inputs | 2 x XLR on top handle (Auto and Manual level settings) 1 x 3.5 mm terminal |
| Built-In Microphone | Monaural microphone in camera body Stereo microphone in Handle Unit |
| Audio Record Mode | AVCHD 28 Mb/s: Linear PCM; 2-Channel; 16-Bit; 48 kHz 24 Mb/s: Linear PCM; 2-Channel; 16-Bit; 48 kHz All other modes: Dolby Digital AC3 |
| XLR Mic Trimming | -12, -6, 0, +6, or +12 dB |
