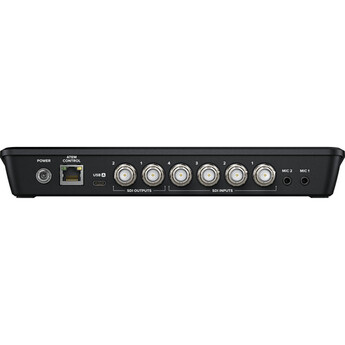

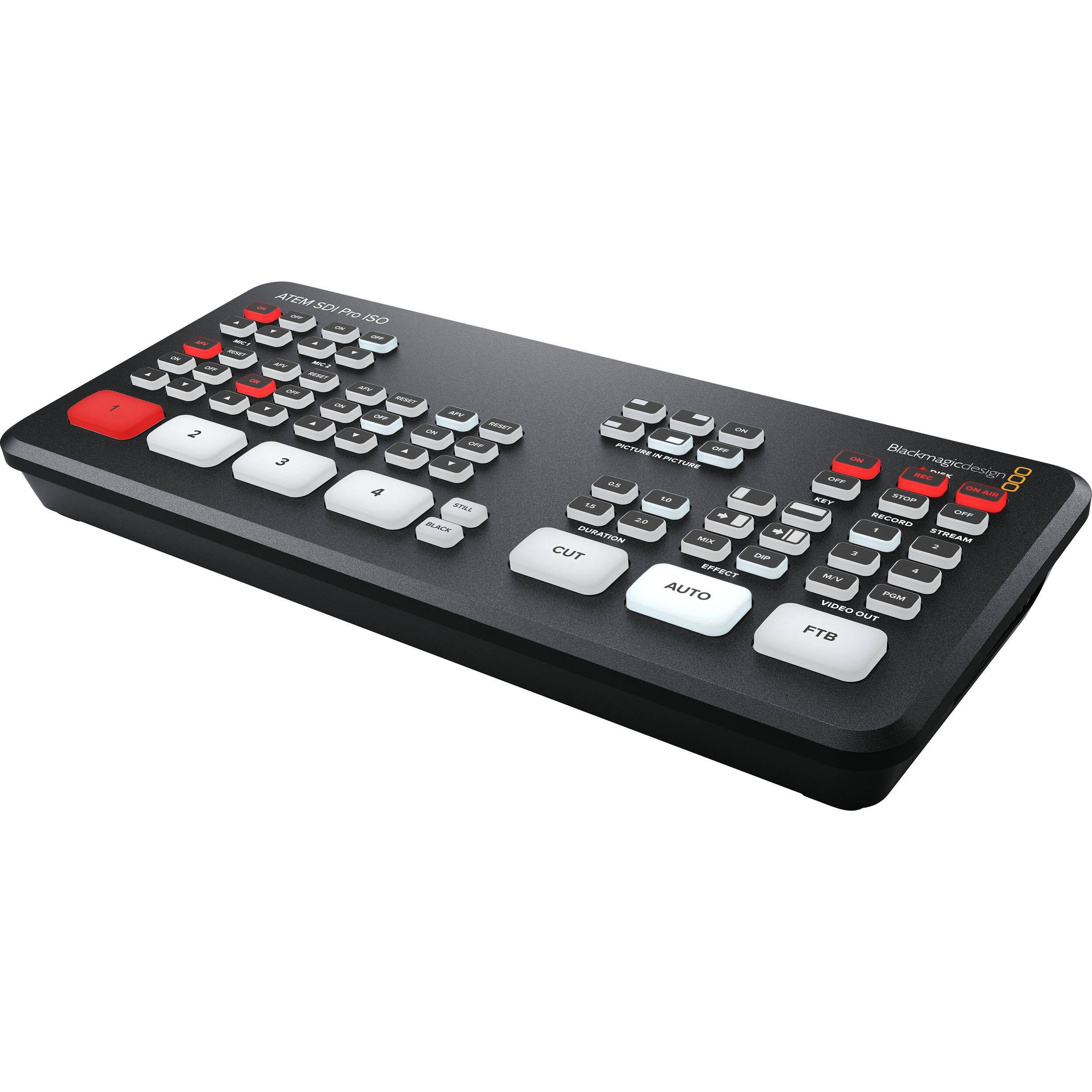

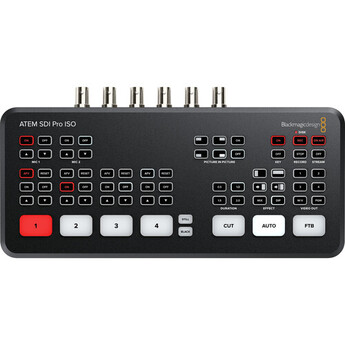

Blackmagic design ATEM SDI Pro ISO Switcher

Name: Blackmagic design ATEM SDI Pro ISO Switcher
Brand: Blackmagic Design
SKU: GT-0756226
Price: 875.0 USD
Availability: InStock

Model: SWATEMMXEPBPRISO

1/3

4-Channel Live Stream 3G-SDI Switcher
Program and 4 x Input ISO Recording
Generates DaVinci Resolve Project
Live Tally, Stream, and Record Status
Record Button, Channel Preview Multiview
2-Channel Digital Audio Mixer per Source
3G-SDI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers

Blackmagic Design ATEM SDI Pro ISO Switcher
12 VDC Power Supply with International Plug Adapters
Limited 1-Year Manufacturer Warranty

Authorized RetailersManufacturer warranty included

New Products OnlyWe never sell used merchandise

Free ShippingOn most items

30 Days Returns*Minimum return policy

"More Retailers See Haggling as a Price of Doing Business. "View article

Reviewer325911081

5/5

Blowing the budget cause these deals are amazing

"Got a top tier sound bar and TV for the price I was going to get just the tv. Awesome Site!"View article

1ezbuyer

5/5

Great Prices and Great Experience

"I’ve purchased two TVs through Greentoe, and both experiences have been excellent. Best prices I could find anywhere, and both TVs were delivered right to my door without any issues. My only mistake was forgetting that Greentoe offers a lot more than just TVs! I recently purchased applioances elsewhere and afterward realized I should have checked Greentoe first. Greentoe will definitely be one of the first places I check before making a major purchase. Let's get the word out, and let the free market dictate prices. Craig Barton Scottsdale AZ"View article

Specifications

Processing

Switching Type	IR Remote, Pushbutton, Software

Packaging Info

Box Dimensions (LxWxH)	10.5 x 7.2 x 2.6"
Package Weight	2.35 lb

Output

Multiview Output	Yes
Video Output Channels	3
Video Outputs	2x BNC (3G-SDI) 1x USB-C
Output Video Format	SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output	SDI

Input

Audio Inputs	2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	SDI: 2-Channel (per Input)
Number of Video Input Sources	4
Video Inputs	4x BNC (3G-SDI)
Input Video Format	SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps

Hardware

Wi-Fi	No
Bluetooth	No
Power Consumption	Device: 36 W
Power I/O	1x Barrel (12 VDC) Input
OS Compatibility	macOS 11 macOS 12 or Later Windows 10 Windows 11
Processor	Not Specified by Manufacturer

General Information

Generators	1x Pattern 2x Color
Available M/E Layers	5 M/E
Audio Mixing	2-Channel Mixing
Effect Types	DVE, Transition, Chroma Key

General

Weight	23.9 oz / 678 g
Dimensions	9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm

Environmental

Operating Humidity	0 to 90%
Operating Temperature	37 to 72°F / 5 to 40°C
Storage Temperature	14 to 140°F / -10 to 60°C

Connectivity

Other I/O	1x RJ45 Control Input/Output
HDCP Support	No

4-Channel Live Stream 3G-SDI Switcher
Program and 4 x Input ISO Recording
Generates DaVinci Resolve Project
Live Tally, Stream, and Record Status
Record Button, Channel Preview Multiview
2-Channel Digital Audio Mixer per Source
3G-SDI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers

Blackmagic Design ATEM SDI Pro ISO Switcher
12 VDC Power Supply with International Plug Adapters
Limited 1-Year Manufacturer Warranty
