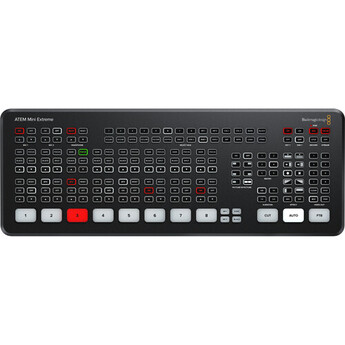

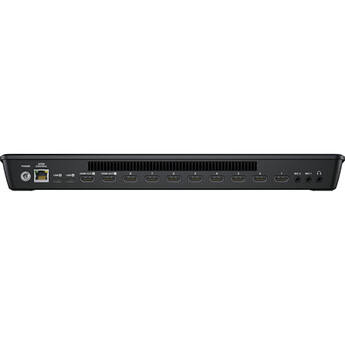

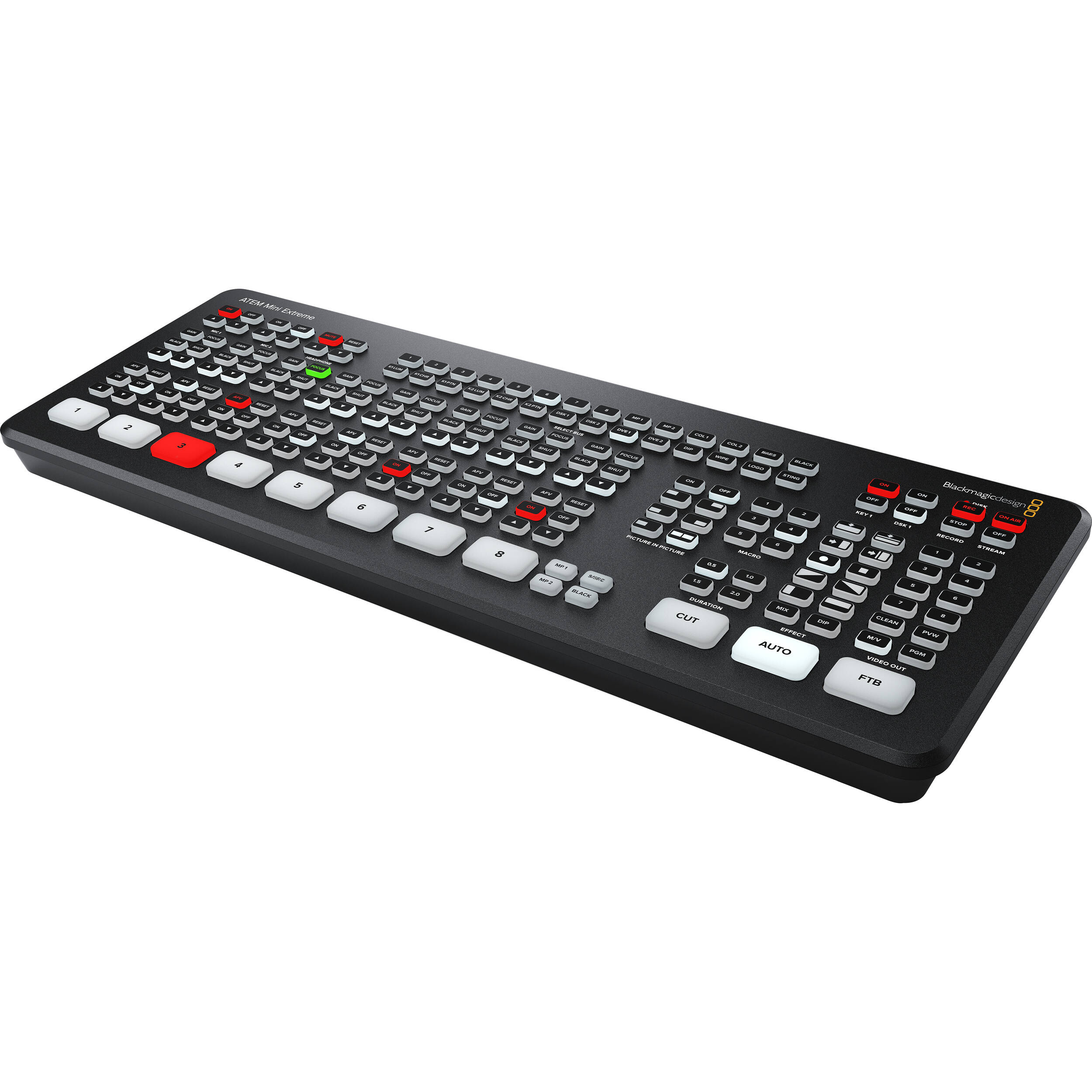

Blackmagic design ATEM Mini Extreme

Name: Blackmagic design ATEM Mini Extreme
Brand: Blackmagic Design
SKU: GT-0756233
Price: 1095.0 USD
Availability: InStock

Model: SWATEMMINICEXT

1/3

8-Channel HDMI Live Streaming Switcher
Supports up to 1080p60
RTMP Streaming via Ethernet or USB-C
Record Program Out
11-Input, 2-Channel Audio Mixer
Input Frame Rate and Format Converter
Re-Sync on All HDMI Inputs
HD Multiview Output with up to 16 Views
Local and Software Switching

Blackmagic Design ATEM Mini Extreme
12 VDC Power Supply with International Plugs
Limited 1-Year Manufacturer Warranty

Authorized RetailersManufacturer warranty included

New Products OnlyWe never sell used merchandise

Free ShippingOn most items

30 Days Returns*Minimum return policy

"Greentoe wants to make the buying process easier by letting you name the price you want to pay for an item, and then they'll find a bargain on your behalf..."View article

Reviewer116527698

5/5

Turntable Treasure

"Found a great Turntable at a Great Price…Easy check out! Would gladly do business with again. Plus free shipping!"View article

1ezbuyer

5/5

Great Prices and Great Experience

"I’ve purchased two TVs through Greentoe, and both experiences have been excellent. Best prices I could find anywhere, and both TVs were delivered right to my door without any issues. My only mistake was forgetting that Greentoe offers a lot more than just TVs! I recently purchased applioances elsewhere and afterward realized I should have checked Greentoe first. Greentoe will definitely be one of the first places I check before making a major purchase. Let's get the word out, and let the free market dictate prices. Craig Barton Scottsdale AZ"View article

Specifications

Processing

Switching Type	Pushbutton, Software
Processing Resolution	1080p

Packaging Info

Box Dimensions (LxWxH)	20 x 7.3 x 3"
Package Weight	4.395 lb

Output

Multiview Output	16-Way Multiview via HDMI
Video Output Channels	2
Video Outputs	2x HDMI
Output Video Format	HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs	1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output	HDMI: 2-Channel

Input

Input Video Format	HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Audio Inputs	2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	HDMI: 2-Channel (per Input)
Number of Video Input Sources	8
Video Inputs	8x HDMI

Hardware

Wi-Fi	No
Power Consumption	Device: 36 W
Power I/O	1x Barrel (12 VDC) Input
Bluetooth	No
OS Compatibility	macOS 10.15 macOS 11.1 or Later Windows 10
Processor	Not Specified by Manufacturer

General Information

Audio Mixing	2-Channel Mixing
Graphics Memory	20 Images
Effect Types	2x DVE 4x Luma Key 4x Chroma Key
Available M/E Layers	9 M/E
Downstream Keys	2x Chroma, Luma, DVE
Generators	5x Pattern 2x Color

General

Dimensions	14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight	2.72 lb / 1.23 kg

Environmental

Operating Temperature	41 to 104°F / 5 to 40°C
Operating Humidity	0 to 70%
Storage Temperature	14 to 140°F / -10 to 60°C

Connectivity

HDCP Support	No
Other I/O	1x RJ45 2x USB-C
Simultaneous Streams	1 Streams
Recording Modes	1920 x 1080p up to 60 fps (MP4)
Transport Protocols	RTMP
IP Video	H.264: 1920 x 1080 Encoding

8-Channel HDMI Live Streaming Switcher
Supports up to 1080p60
RTMP Streaming via Ethernet or USB-C
Record Program Out
11-Input, 2-Channel Audio Mixer
Input Frame Rate and Format Converter
Re-Sync on All HDMI Inputs
HD Multiview Output with up to 16 Views
Local and Software Switching

Blackmagic Design ATEM Mini Extreme
12 VDC Power Supply with International Plugs
Limited 1-Year Manufacturer Warranty
