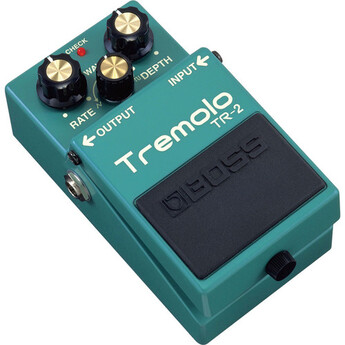

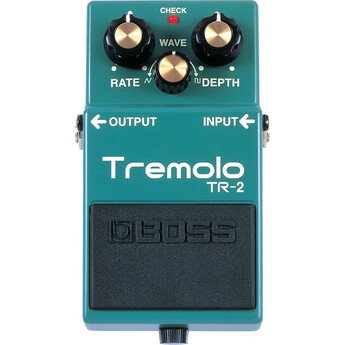

Boss TR-2 Tremolo Pedal
Model: TR-2








| Package Weight | 1.145 lb |
|---|---|
| Box Dimensions (LxWxH) | 6 x 3.75 x 2.7" |
| Nominal Output Level | -20 dBu |
|---|---|
| Output Impedance | 1 kOhm |
| Residual Noise | -90 dBu (IHF-A Weighted, Typ.) |
| Connectors | INPUT Jack, OUTPUT Jack, AC Adapter Jack (9 VDC) |
| Nominal Input Level | -20 dBu |
| Current Draw | 20 mA (9 VDC) |
| Dimensions | 2.875 x 5.13 x 2.38" (73 x 129 x 59 mm) |
| Weight | 15 oz (400 g) |
| Power Supply | 9 VDC: Dry Battery 9 V type (6F22 / 9 V), AC Adapter (PSA-Series, available separately) |
| Input Impedance | 1 MOhm |
