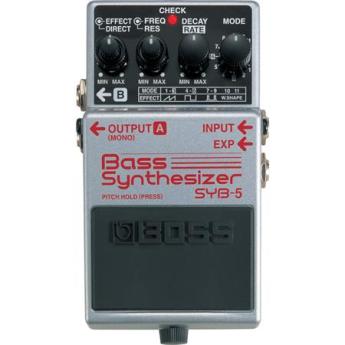

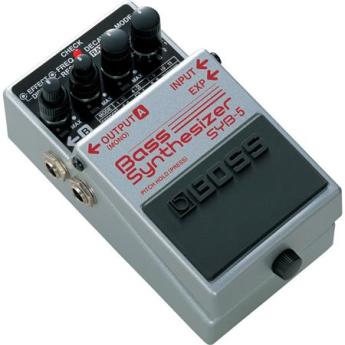

Boss Bass Synthesizer
Model: SYB-5








| Nominal Input Level | -20 dBu |
|---|---|
| Input Impedance | 1 M ohms |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohms |
| Recommended Load Impedance | 10 k ohms or greater |
| Residual Noise | -96 dBu (IHF-A, Typ.); All knobs at center position |
| Connectors | Input jack, Output A (MONO) jack, Output B jack, EXP jack, AC adaptor jack (DC 9 V) |
| Power Supply | DC 9 V: Dry battery / 9 V type (6F22 (carbon), 6LR61 (alkaline)), AC Adaptor (PSA-series: optional) |
| Current Draw | 50 mA (DC 9 V) |
| Accessories | Owner's Manual Mode Label Dry battery / 9 V type (6LR61) |
| Options (Sold separately) | AC Adaptor (PSA-series), Expression Pedal (Roland EV-5) |
| Dimensions (W x D x H) | 73mm x 129 mm x 59mm (2-7/8 x 5-1/8 x 2-3/8") |
| Weight | 440g (0.99 lbs) |
