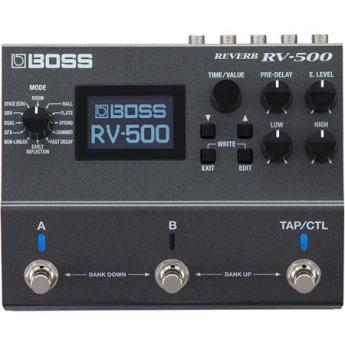

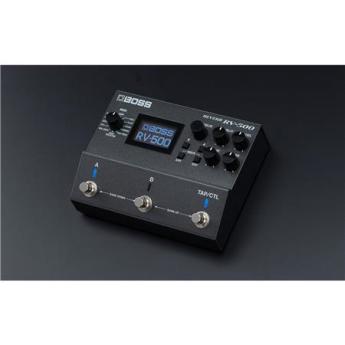

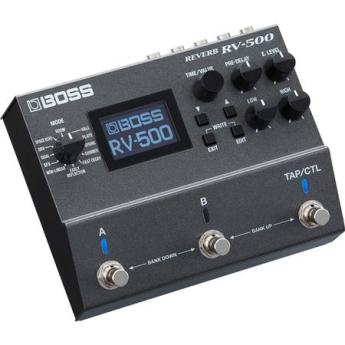

Boss RV-500 Reverb Pedal

Model #RV-500

Boss Warranty
Boss rv 500 1
Boss rv 500 1
Boss rv 500 4
Boss rv 500 3
Boss rv 500 2
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Product Unavailable

We are sorry. At this time, we are not accepting offers on this product.

Specifications

Packaging Info

Box Dimensions (LxWxH) 9.9 x 7.8 x 4.5"
Package Weight 3.7 lb

General Information

Weight 2.2 lb / 1.0 kg (including battery)
Dimensions 6.7 x 5.4 x 2.4" / 17.0 x 13.8 x 6.2 cm
Expected Battery Life Alkaline: approximately 4.5 hours, depending on condition of use
Current Draw 225 mA
Power Supply 4 x AA batteries (LR6), AC adapter (available separately)

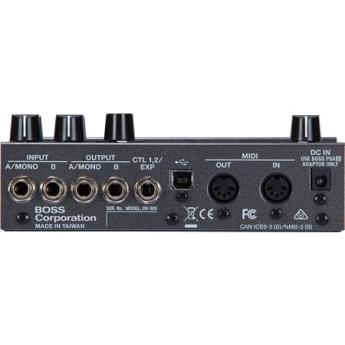

I/O 2 x 1/4" Input jack, phone type
2 x 1/4" Output jacks, phone type
1 x 1/4" TRS CTL1, 2/EXP2 jack, phone type
1 x USB Type-B computer port
1 x 5-Pin DIN MIDI Input
1 x 5-Pin DIN MIDI Output
1 x DC input jack for power
Display Graphic LCD (128 x 64 dots, backlit LCD)
Bypass Buffered or true (with relays)
Controls A Switch
B Switch
TAP/CTL Switch
DOWN Button
UP Button
EXIT Button
EDIT Button
MODE Knob
TIMEVALUE Knob
PRE-DELAY Knob
E.LEVEL Knob
LOW Knob
HIGH Knob
Recommended Load Impedance Outputs: 20 kOhms or greater
Impedance Inputs: 1 MOhm
Outputs: 2 kOhms
Maximum Output Level 8 dBu
Nominal Output Level -10 dBu
Maximum Input Level 8 dBu
Nominal Input Level -10 dBu
Memory 198 (2 x 99 banks, segmented into A and B categories)
297 (3 x 99 banks, segmented into A, B, and C categories)
Modes 12x (room, hall, plate, spring, shimmer, fast decay, early reflection, non-linear, SFX, dual, SRV, space echo)
Processing 32-bit floating point
AD/DA Conversion 32-bit
Sampling Frequency 96 kHz
Product Highlights
  • 21 Modulation Effects in 12 Modes
  • Stereo I/O
  • Run 2 Reverbs Simultaneously
  • Separate Verb by Frequency or Output
  • Delay & Modulation on All Verbs
  • Tap Tempo/Control Footswitch
  • Top-Panel Knobs for Broad Control
  • LCD & Buttons for Extensive Editing
  • Control/Expression Jack & MIDI I/O
  • Included Editor/Librarian Software
In The Box
  • Boss RV-500 Reverb Pedal
  • AA Batteries
  • Limited 1-Year Warranty on Parts
  • Limited 90-Day Warranty on Switches
  • Limited 90-Day Warranty on Labor
