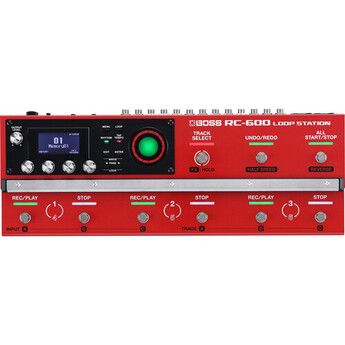

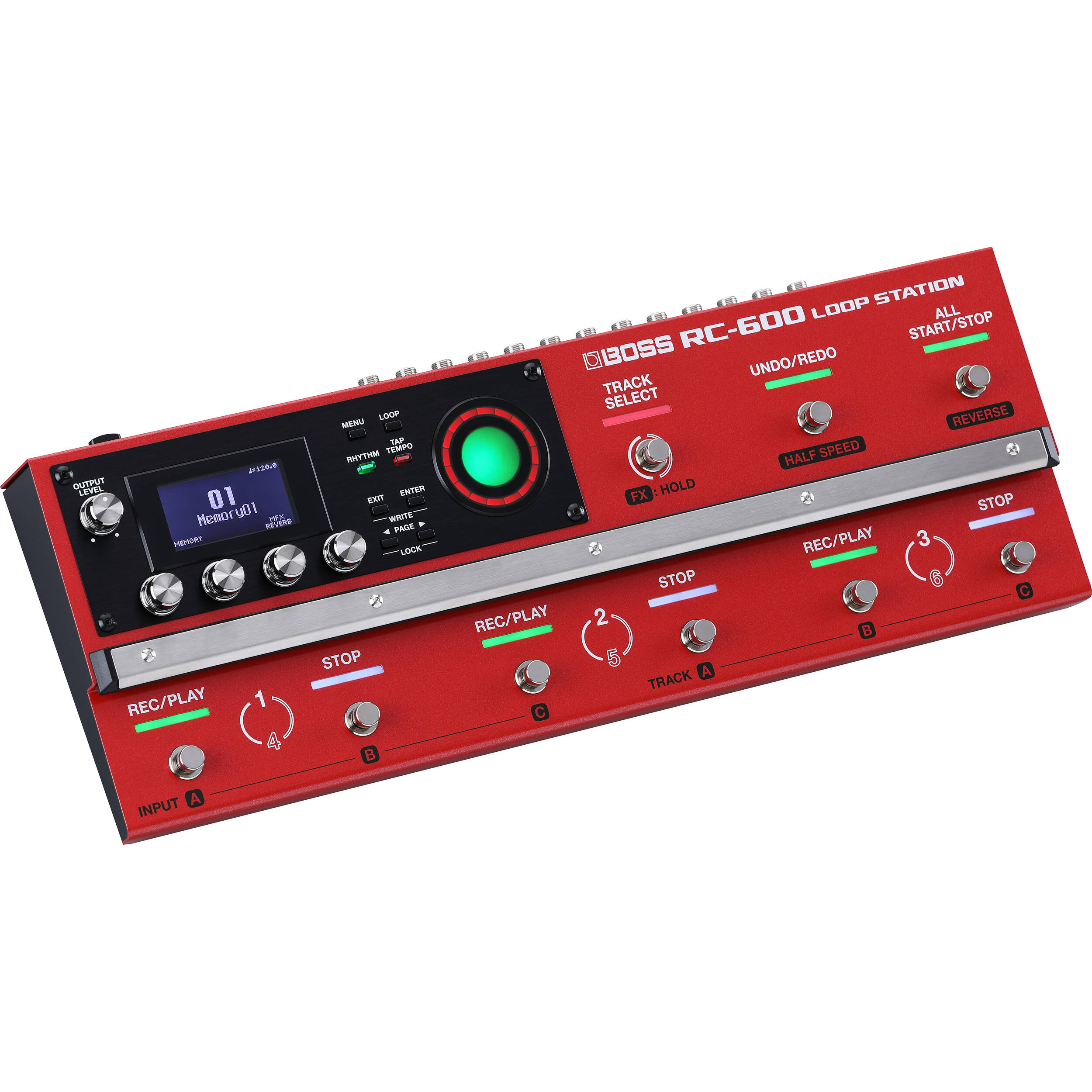

Boss RC-600 Loop Station
Model: RC-600








| Package Weight | 8.21 lb |
|---|---|
| Box Dimensions (LxWxH) | 22.7 x 10 x 5" |
| Recording and Playback | Number of Tracks: 6 Data Format: WAV (44.1 kHz, 32-Bit Float, Stereo) Maximum Recording Time: Approximately 1.5 Hours (1 track), Approximately 13 hours (Total of All Memories) |
|---|---|
| Rhythms | Rhythm Types: 200+ Rhythm Kits: 16 |
| Effects | Input FX: 49 Types Track FX: 53 Types Master FX: 2 Types |
| Memory | 99 |
| Nominal Input Level | Mic In 1, 2: -40 dBu Inst In 1, 2: -10 dBu |
| Maximum Input Level | Mic In 1, 2: 0 dBu Inst In 1, 2: +7 dBu or +20 dBu (Selectable) |
| Input Impedance | Mic Inputs 1, 2: 3 Kilohms Inst Inputs 1, 2: 1 Megohm or 25 Kilohms (Selectable) |
| Nominal Output Level | Main Output: -10 dBu Sub Output 1, 2: -10 dBu |
| Maximum Output Level | Main Output: +7 dBu Sub Output 1, 2: +7 dBu |
| Sampling Frequency | 44.1 kHz |
| Recommended Load Impedance | Main Output: 10 Kilohms Sub Output 1, 2: 10 Kilohms |
| Controls | 3 Rec/Play Switches 3 Stop Switches Track Select Switch Undo/Redo Switch All Start/Stop Switch Menu Button Loop Button Rhythm Button Enter Button Exit Button Page Buttons 4 Knobs Output Level Knob |
| Display | Graphic LCD (128 x 64 Dots, Backlit LCD) |

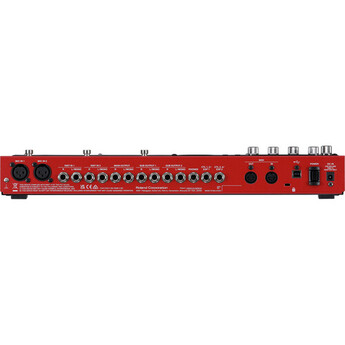

| Connectors | Mic In 1, 2 Connectors: XLR Type (Balanced, Phantom Power: 48 VDC, 10 mA Max) Inst In 1, 2 Jacks: 1/4" / 6.3 mm Main Output Jacks: 1/4" / 6.3 mm Sub Output 1, 2 Jacks: 1/4" / 6.3 mm Headphones Jack: Stereo 1/4" / 6.3 mm Phone Type CTL 1,2 / EXP 1 Jack: 1/4" / 6.3 mm CTL 3,4 / EXP 2 Jack: 1/4" / 6.3 mm USB Port: USB Type-B MIDI: 2 x 5-Pin DIN (In, Out) DC Input Jack |
| Power Supply | AC Adapter |
| Current Draw | 1.2 A (with Phantom Power) 1.1 A (without Phantom Power) |
| Interior Dimensions (W x D x H) | 17.1 x 6.4 x 2.6" / 43.5 x 16.3 x 6.6 cm |
| Weight | 5.3 lb / 2.4 kg |
| Output Impedance | Main Output: 1 Kilohm Sub Output 1, 2: 1 Kilohm |
| AD/DA Conversion | 32 Bits |
