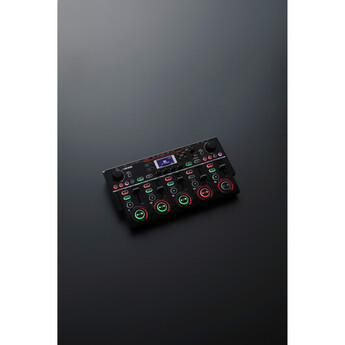

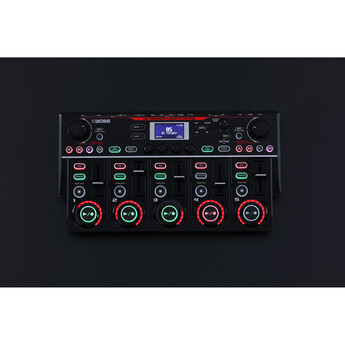

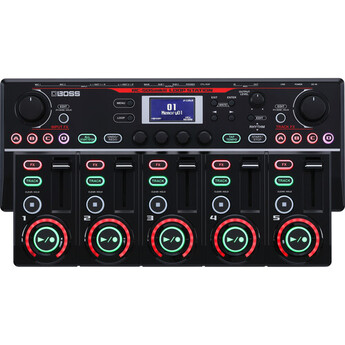

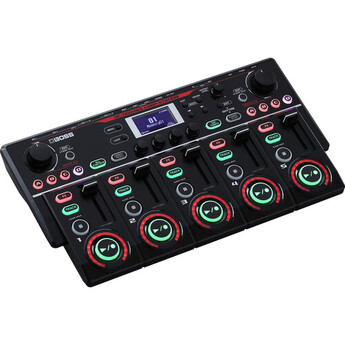

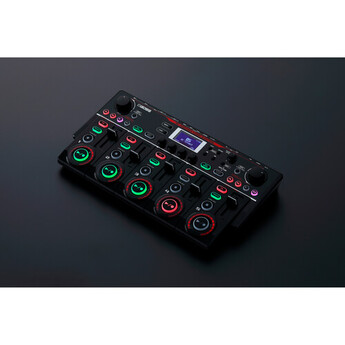

Boss RC-505MK2 Loop Station Hands-On Looper for Modern Performers
Model: RC-505MK2








| Package Weight | 7.205 lb |
|---|---|
| Box Dimensions (LxWxH) | 22.7 x 12.2 x 5" |
| AD/DA Conversion | 32 Bits |
|---|---|
| Processing | 32-Bit Floating Point |
| Inputs | 2 x XLR Microphone Inputs 4 x 1/4" / 6.3 mm TS Instrument Instrument (Stereo Pairs) 2 x 1/4" TRS Control/Expression Inputs |
| Input Impedance | Microphone: 3 Kilohms Instrument: 1 Megohm, 25 Kilohms (Selectable) |
| Input Level | Microphone: -40 dBu (Nominal), -10 dBu (Maximum) Instrument: -10 dBu (Nominal), +7/+20 dBu (Maximum, Selectable) Auxiliary: -20 dBu |

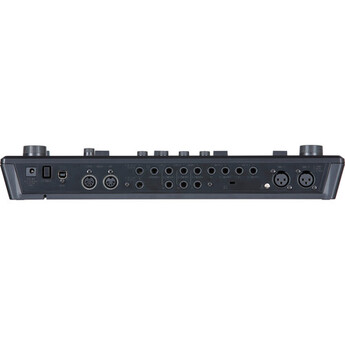

| Outputs | 2 x 1/4" / 6.3 mm TRS Main Output 2 x 1/4" / 6.3 mm TRS Sub 1 Output 2 x 1/4" / 6.3 mm TRS Sub 2 Output 1 x 1/4" / 6.3 mm TRS Headphone Output |
| Output Impedance | 1 Kilohm |
| Recommended Load Impedance | ≥ 10 Kilohms |
| Recording/Playback | Maximum Record Time: 1.5 Hours per Track, 13 Hours Total Maximum Phrase Memory: 99 Number of Tracks: 5 Data Format: WAV (44.1 kHz, 32-Bit Float, Stereo) |
| Other Connectors | 2 x 5-Pin DIN MIDI I/O
1 x USB Type-B |
| Rhythm Types | Over 200, 16 Kits |
| Display | Graphic LCD (128 x 64 Dots, Backlit LCD) |
| Power | Via AC Adapter |
| Current Draw | 1 A (with Phantom Power), 0.9 A (without Phantom Power) |
| Dimensions | 16.6 x 9.3 x 2.7" / 420 x 234 x 67 mm |
| Weight | 4 lb / 1.8 kg |
| Nominal Output Level | -10 dBu |
| Sample Rate | 44.1 kHz |
