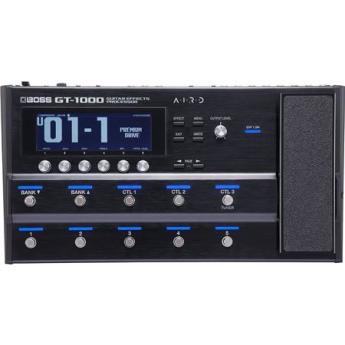

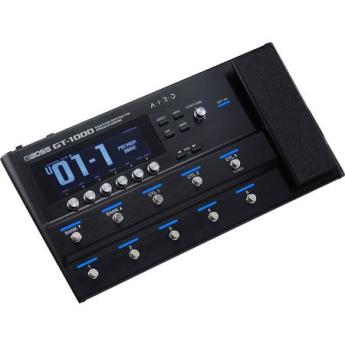

Boss GT-1000 Guitar Effects Processor
Model: GT-1000








| Sampling Frequency | 96kHz |
|---|---|
| AD Conversion | 32 bits + AF method AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters |
| DA Conversion | 32 bits |
| Effects | 116 types |
| Patches | 250 (User) + 250 (Preset) |
| Phrase Loop | Mono: 38 sec. Stereo: 19 sec. |
| Tuner Internal Detection | +/-0.1 cent |
| Nominal Input Level | Input: -10dBu Return1: -10dBu Return2: -10dBu |
| Maximum Input Level | Input: +18dBu Return1: +8dBu Return2: +8dBu |
| Input Impedance | Input: 1MOhms Return1: 1MOhms Return2: 1MOhms |
| Nominal Output Level | Main Output (L/Mono, R): -10dBu Sub Output (L, R): +4dBu Phones: -10dBu Send1: -10dBu Send2: -10dBu |
| Output Impedance | Main Output (L/Mono, R): 1kOhms Sub Output (L, R): 600Ohms Phones: 20Ohms Send1: 1kOhms Send2: 1kOhms |
| Recommended Load Impedance | Main Output (L/Mono, R): 1kOhms Sub Output (L, R): 600Ohms Phones: 20Ohms Send1: 1kOhms Send2: 1kOhms |
| Controls | DOWN switch, UP switch CTL1--3 switches, 1--5 switches, POWER switch EFFECT button, MENU button, EXIT button, WRITE button, PAGE button 1-6 knobs, OUTPUT LEVEL knob Expression pedal |
| Display | Graphic LCD (512 x 160 dots, backlit LCD) |

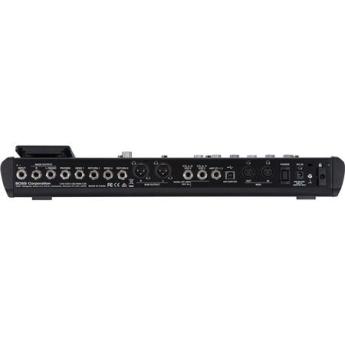

| Connectors | Input jack, Main Output (L/Mono, R) jacks, SEND1 jack, RETURN1 jack, SEND2 jack, RETURN2 jack: 1/4" phone type SUB OUTPUT (L, R) connectors: XLR type PHONES jack: Stereo 1/4-inch phone type CTL4, 5/EXP2 jack, CTL6, 7/EXP3 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type USB COMPUTER port: USB B type DC IN jack MIDI (IN, OUT) connectors |
| Power Supply | AC adapter |
| Current Draw | 1.2A |
| Dimensions (WxDxH) | 462 x 248 x 70 - 95mm (18.19 x 9.76 x 2.76 - 3.74") |
| Weight | 3.6kg (7.94 lbs) |
