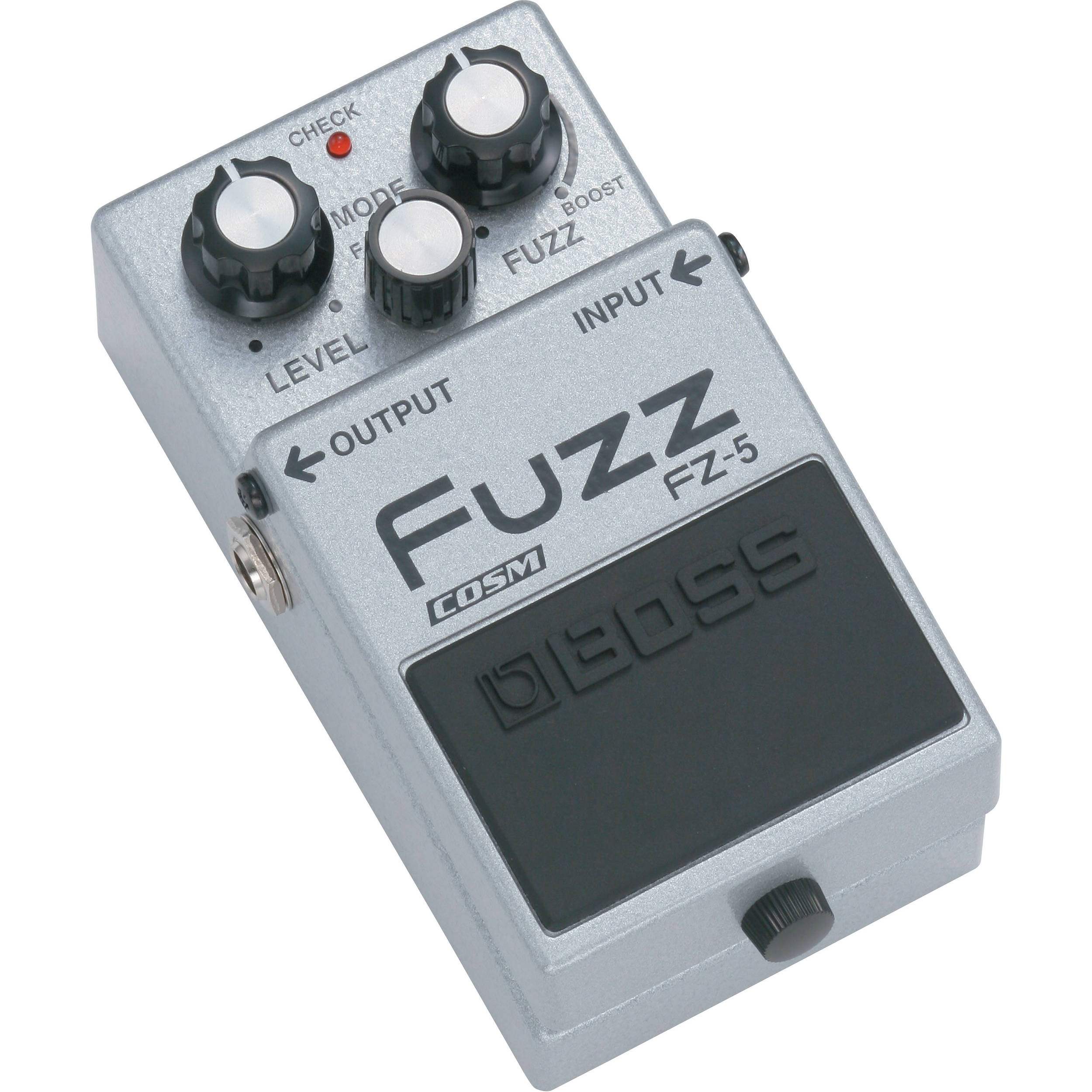

Boss FZ-5 Fuzz Pedal
Model: FZ-5








| Package Weight | 1.3 lb |
|---|---|
| Box Dimensions (LxWxH) | 6.063 x 3.937 x 2.598" |
| Nominal Output Level | -20 dBu |
|---|---|
| Output Impedance | 1 kOhm |
| Recommended Load Impedance | 10 kOhms or greater |
| Controls | Pedal switch, Level knob, Fuzz knob, Mode knob |
| Indicator LEDs | Check indicator (Serves also as battery check indicator) |
| Nominal Input Level | -20 dBu |
| Power Supply | DC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adapter (PSA series: optional) |
| Current Draw | 36 mA (DC 9 V) |
| Expected Battery Life | Carbon: 3 hours Alkaline: 10 hours (These figures will vary depending on the actual conditions of use) |
| Dimensions | 2.9 x 5.13 x 2.4" (73 x 129 x 59 mm) |
| Weight | 1 lb (440 g) |
| Connectors | 1 x 1/4" (6.3 mm) Input jack 1 x 1/4" (6.3 mm) Output jack 1 x AC adapter jack (DC 9 V) |
| Input Impedance | 1 MOhm |
