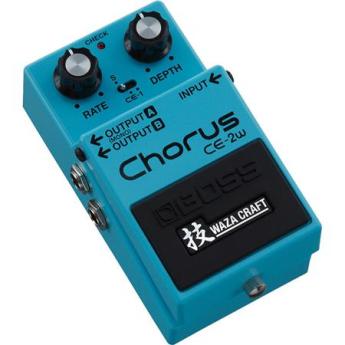

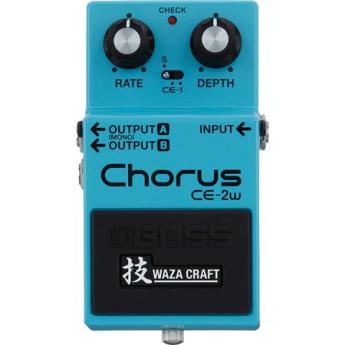

Boss Waza Craft Chorus
Model: CE-2W








| Modes | 3 modes Standard CE-1 Chorus CE-1 Vibrato |
|---|---|
| Nominal Input Level | 20 dBu |
| Input Impedance | 1 M ohms |
| Nominal Output Level | 20 dBu |
| Output Impedance | 1 k ohms |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | Pedal switch Standard/CE-1 Mode switch DEPTH knob |
| Indicator | CHECK indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack: 1/4" phone type OUTPUT A (MONO) jack: 1/4" phone type OUTPUT B jack: 1/4" phone type DC IN jack |
| Power Supply | Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22) AC adaptor (sold separately) |
| Current Draw | 25 mA |
| Expected battery life (continuous use) | Alkaline: Approx. 32 hours Carbon: Approx. 18 hours |
| Accessories | Owner's manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9V, 6LR61) |
| Options | AC Adaptor (PSA-Series) |
| Dimensions (W x D x H) | 73mm x 129mm x 59mm (2-7/8 x 5-1/8 x 2-3/8") |
| Weight (Incl. Battery) | 450 g 1 lbs. |
