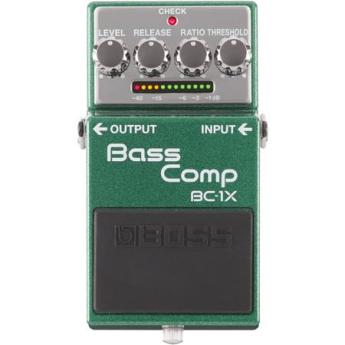

Boss Bass Compressor
Model: BC-1X








| Nominal Input Level | -20 dBu |
|---|---|
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | Pedal switch THRESHOLD knob RATIO knob RELEASE knob LEVEL knob |
| Indicator | CHECK indicator (Serves also as battery check indicator) GAIN REDUCTION indicator |
| Connectors | INPUT jack OUTPUT jack DC IN jack |
| Power Supply | Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22) AC adaptor (sold separately) |
| Working Voltage | 18 V |
| Current Draw | 90 mA |
| Expected battery life (Continuous use) | Alkaline: Approx. 3 hours |
| Accessories | Owner's Manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series |
| Dimensions (W x D x H) | 73mm x 129mm x 59mm (2-7/8 x 5-1/8 x 2-3/8") |
| Weight | 450 g (1 lbs) |
