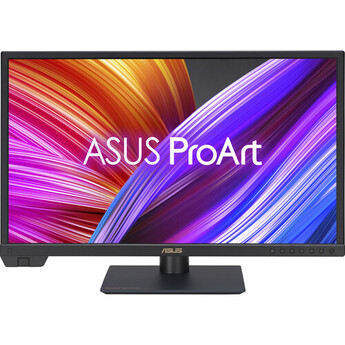

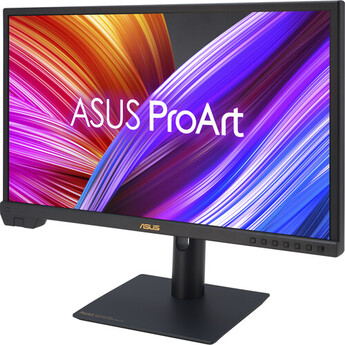

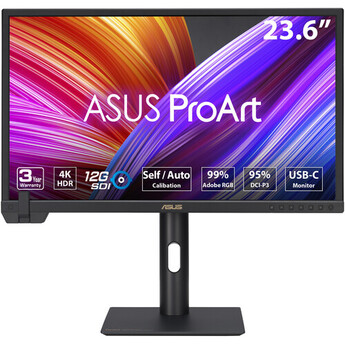

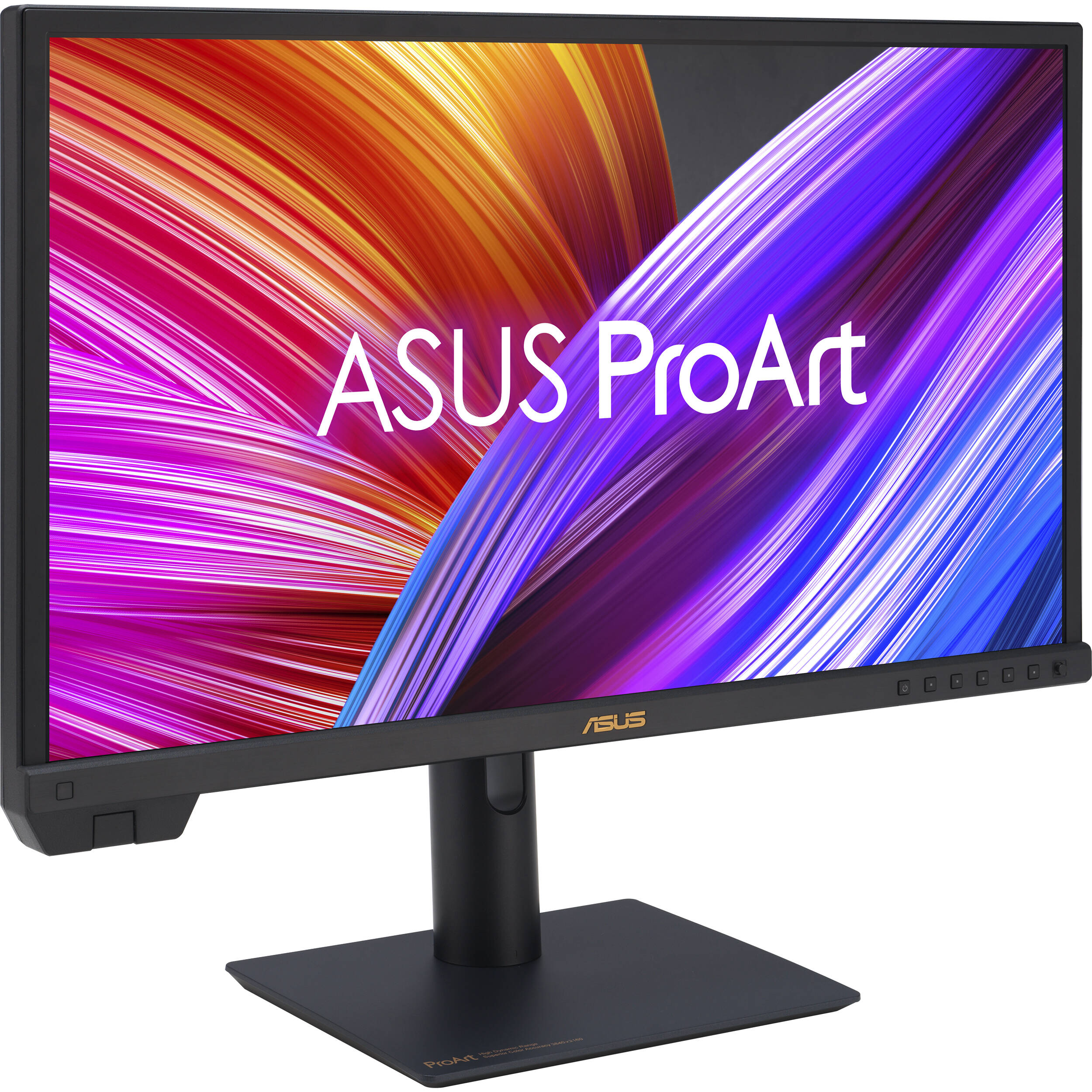

Asus ProArt Display PA24US 23.6" 4K HDR Monitor
Model: PA24US








| Supported Languages | Croatian Czech Dutch English French German Hungarian Indonesian Italian Japanese Korean Persian Polish Portuguese Romanian Russian Simplified Chinese Spanish Thai Traditional Chinese Turkish Ukrainian |
|---|
| Built-In Speakers | Yes, 2x 2 W |
|---|
| Box Dimensions (LxWxH) | 29.8 x 18.5 x 6" |
|---|---|
| Package Weight | 21.37 lb |
| HDR Support | Yes, HDR10/Hybrid Log Gamma |
|---|---|
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 100% sRGB 99% Adobe RGB 95% DCI-P3 |
| Finish | Anti-Glare / Matte |
| Touchscreen Technology | No |

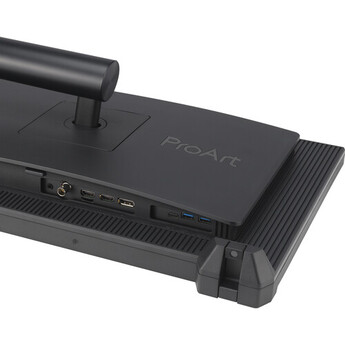

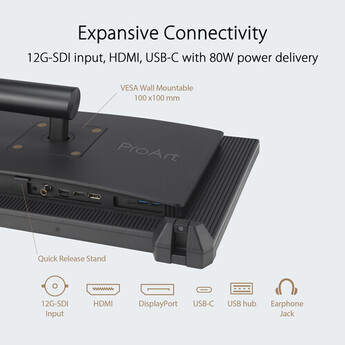

| Inputs | Rear: 2x HDMI 2.0 1x DisplayPort 1.4 1x 12G-SDI |
| Outputs | No |
| USB I/O | Rear: 1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Built-In Speakers | Yes, 2x 2 W |
| Display Size | 23.6" |
| Native Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Maximum Brightness | 600 nits / cd/m2 (Peak in HDR Mode) 350 nits / cd/m2 (Sustained in SDR Mode) |

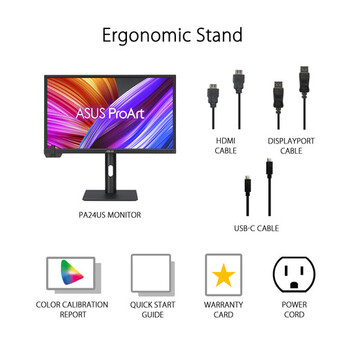

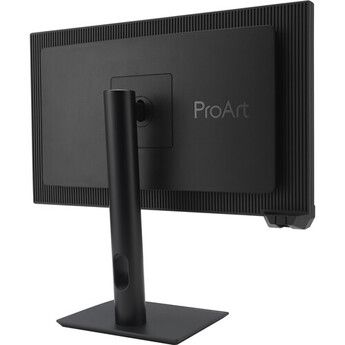

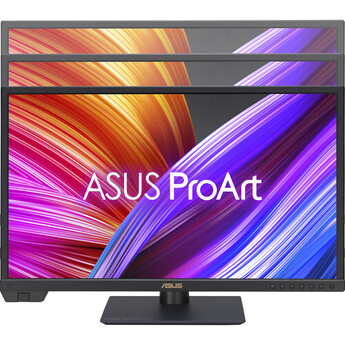

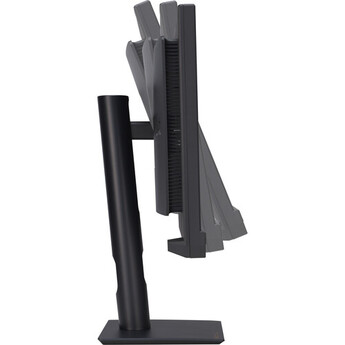

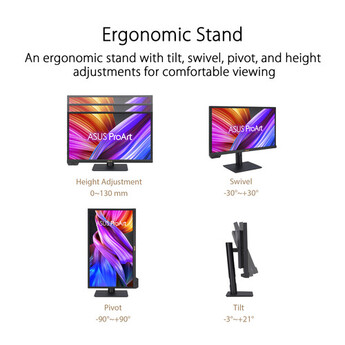

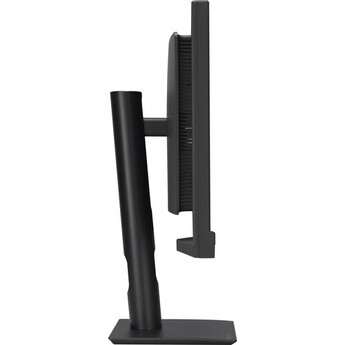

| Adjustments | Height: 5.1" / 130 mm Tilt: 24° (-3 to 21°) Rotation: 180° (-90 to 90°) |
|---|---|
| Certifications | TUV Flicker-free, TUV Low Blue Light |
| Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes, Kensington |
| Dimensions | 21.6 x 20.5 x 7.5" / 54.9 x 52.1 x 19 cm (with Stand) |
| Weight | 13.21 lb / 5.99 kg (with Stand) 9.48 lb / 4.30 kg (without Stand) |
| Power Adapter Type | Internal |
|---|---|
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Typical: < 24.1 W Standby: < 0.5 W |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dot Pitch | 0.135 x 0.135 mm |
|---|---|
| Pixels Per Inch (ppi) | 186 ppi |
| Look-Up Table | Yes |
| Finish | Anti-Glare / Matte |
| Touchscreen Technology | No |
| Variable Refresh Technology | Adaptive-Sync, Variable Refresh Rate (VRR) |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 100% sRGB 99% Adobe RGB 95% DCI-P3 |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 20.57 x 11.57" / 522.43 x 293.87 mm |
| Panel Type | IPS-Type LCD |
| HDR Support | Yes, HDR10/Hybrid Log Gamma |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Response Time | 5 ms (GtG) |
| Refresh Rate | 60 Hz |
| Maximum Brightness | 600 nits / cd/m2 (Peak in HDR Mode) 350 nits / cd/m2 (Sustained in SDR Mode) |
| Native Resolution | 3840 x 2160 |
| Display Size | 23.6" |
| Aspect Ratio | 16:9 |
| Multi-Input Support (PIP/PBP) | Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
|---|---|
| Outputs | No |
| Inputs | Rear: 2x HDMI 2.0 1x DisplayPort 1.4 1x 12G-SDI |
| USB Power Delivery | 80 W (via USB-C) |
| USB I/O | Rear: 1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
| HDCP Support | Yes, Version 2.2 |
