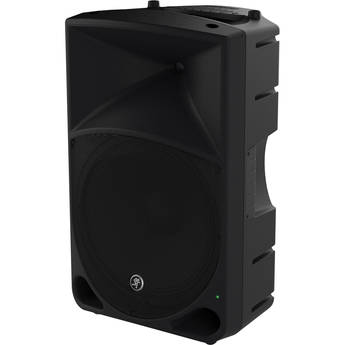

Mackie Thump15 1000 W 15" Powered Loudspeaker
Model: THUMP15
MACKIE Warranty
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 42.35 lb |
Box Dimensions (LxWxH) | 29.2 x 17.4 x 16.8" |
General Information
Vertical Coverage Angle | 60˚ |
Maximum SPL | 126 dB SPL @ 1 m |
Compression Driver | 1.4' (36 mm) |
Diaphragm | Titanium (tweeter) |
Magnet | Ferrite |
Woofer Diameter | 15.0" (381 mm) |
Cone Material | Paper (woofer) |
Rated Power | 500 W RMS, 1000 W peak (overall) 400 W RMS, 800 W peak (LF) 100 W RMS, 200 W peak (HF) |
Amplification | Class D (LF) Class AB (HF) |
Input | Female XLR / 1/4" combo balanced |
Input Impedance | 20 k balanced bridging, 10 k unbalanced |
Thru | Male XLR balanced |
Frequency Response | 39 Hz - 20 kHz (-3 dB) 32 Hz - 23 kHz (-10 dB) |
Sensitivity | +4 dBu for full output (level control @ center) -36 dBu for full output (level control @ max) |
Crossover Type | 24 dB / octave |
Crossover Frequency | 3 kHz |
Equalization | Low Frequency EQ: ±6 dB @ 80 Hz, shelving Mid Frequency EQ: ±6 dB sweepable from 100 Hz to 8 kHz High Frequency EQ: ±6 dB @ 12 kHz, shelving |
Power | US detachable line cord: 100 – 120 VAC, 50 – 60 Hz, 130WEU detachable line cord: 220 – 240 VAC, 50 – 60 Hz, 130WAC connector: 3-pin IEC 250 VAC, 10 A malePower supply type: switchmodeOperating temperature: 0 - 40˚ CExtended ambient temperature: 32 - 104˚ F |
Input Protection | Peak and RMS limiting, power supply and amplifier thermal protection |
LED | Front / rear power ON, rear OL (overload) |
Construction | Basic Design: TrapezoidalCabinet: PolypropyleneFinish: TexturedHandles: One on each side, one on topGrille: Perforated metal with weather-resistant coatingMonitor Angle: 45˚ |
Mounting | Pole-mountable via the built-in socket on the bottom of the cabinet. Be sure the pole is capable of supporting the weight of the Thump15 loudspeaker |
Dimensions | 27.6 x 16.8 x 15.5" (702 x 427 x 394 mm) |
Weight | 33.2 lb (15.1 kg) |
Level Control | Rotating knob, 0 dB at center |
Horizontal Coverage Angle | 90˚ |
- 15" High-Output Woofer
- 1.4" Titanium Dome Compression Driver
- Precision 2-Way Crossover
- 3-Band EQ with Sweepable Mid
- Mic/Line Input
- Tripod and Pole-Mounting
- Angled Design For Use as Floor Monitor
- Rugged Construction Design
- Mackie Thump15 1000 W 15" Powered Loudspeaker
- Limited 1-Year Warranty
