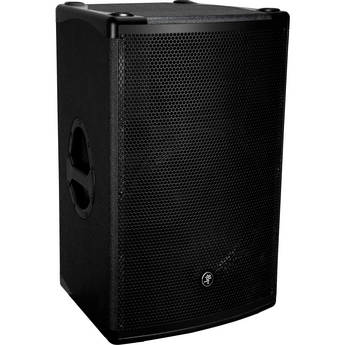

Mackie S515 - 15" Two-Way Passive Loudspeaker
Model: S515
MACKIE Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 57.5 lb |
Box Dimensions (LxWxH) | 30.0 x 20.5 x 18.0" |
General Information
Coverage Angle | Horizontal: 90° Vertical: 50° |
Sensitivity | 101.1 dB SPL (1W @ 1 m) |
Nominal Impedance | 8Ω |
Power Handling | 300W continuous 600W program 1,200W peak |
Crossover Frequency | 3,400 Hz |
Low Frequency Driver | 15" (381 mm) woofer, vented |
Active or Passive | Passive two-way, full-range loudspeaker |
Enclosure Material | Wood with textured black PVC vinyl covering |
Mount Type | Pole-mountable |
Input Connections | Paralleled inputs: 2 x 1/4" TS 2 x NL4 Speakon |
Dimensions (H x W x D) | 28.1 x 17.8 x 15.6" (714 x 452 x 396 mm) |
Weight | 51 lb (23 kg) |
High Frequency Driver | 1" (25 mm) tweeter |
Frequency Response | 47 Hz to 18 kHz, -10 dB |
- Handles 600W Program / 1,200W Peak
- Rugged PVC Vinyl Covered Wood Enclosure
- Wide-Dispersion 90 x 50° Horn
- HF Protection Circuitry
- Speakon and 1/4" Input and Thru Connects
- Mackie S515 - 15" Two-Way Passive Loudspeaker
- Limited 1-Year Warranty
