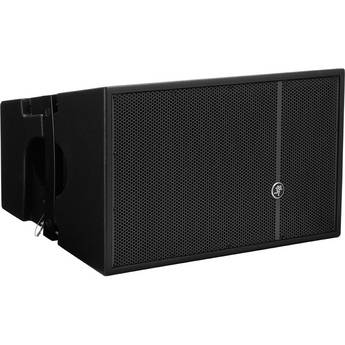

Mackie HDA 1200W 12" 2-Way Arrayable Powered Loudspeaker
Model: HDA
MACKIE Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 80.35 lb |
Box Dimensions (LxWxH) | 27.0 x 21.0 x 20.0" |
General Information
Amplifier | LF: Class-D, 500W RMS, 1000W Peak HF: Class-D, 100W RMS, 200W Peak |
Coverage | 110° Horizontal x 20° Vertical |
Maximum Sound Pressure Level (SPL) | 124dB Measured 131dB Calculated |
Total Harmonic Distortion (THD) | |
Input Impedance | 11 kOhms |
Crossover | 1.5kHz |
Low Frequency Driver | 12" (305mm) Paper Diaphragm Woofer with Neodymium Magnet and 3" Voice Coil |
Active or Passive | Active |
Enclosure Material | 15mm Birch Plywood with Black Paint Finish, Powder-Coated Steel Grille, and 2 Integrated Handles |
Connectors | 1 x XLR Input 1 x XLR Parallel Output 1 x Locking Neutrik PowerCon A AC Mains Connector 1 x Locking Neutrik PowerCon B AC Loop Connector |
Mounting | 1 x Standard Pole Socket 4 x M10 Fly Points 1 x Integrated Flybar |
Power | 100-240VAC, 50/60Hz |
Dimensions (HxWxD) | 14.7 x 24.7 x 15.9" (373 x 628 x 405mm) |
Weight | 59 lbs (26.7kg) |
High Frequency Driver | 2 x 1.7" (43mm) Beyma Mylar Tweeters with Neodymium Magnets |
Frequency Response | 52Hz - 20kHz (-10dB) 60Hz - 18kHz (-3dB) |
- Compact and Lightweight Birch Cabinet
- 12" Neodymium Woofer
- Dual 1.7" Beyma Tweeters
- 110° x 20° Constant Curvature
- 1200W Class-D Amplification
- High-Definition Digital Processing
- Selectable Voicing Modes
- Limiter and Protection Circuitry
- M10 Fly Points and Integrated Flyware
- Mackie HDA 1200W 12" 2-Way Arrayable Powered Loudspeaker
- 3-Year Limited Warranty
