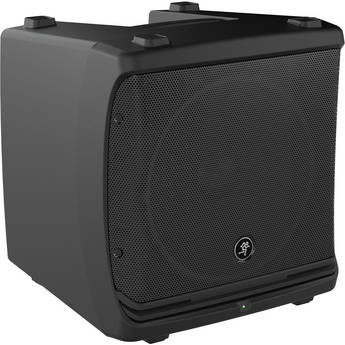

Mackie DLM12 Full-Range 12" Powered Loudspeaker
Model: DLM12
MACKIE Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Unavailable
We are sorry. At this time, we are not accepting offers on this product.
Specifications
Packaging Info
| Package Weight | 37.0 lb |
| Box Dimensions (LxWxH) | 20.0 x 20.0 x 19.5" |
General Information
| Low Frequency Driver | 12" (305 mm) woofer 2.5" (64 mm) voice coil diameter Paper diaphragm Ferrite magnet |
| High Frequency Driver | 1.75" (44 mm) compression driver 1" (25 mm) horn entry diameter Polyimide film diaphragm Ferrite magnet |
| Frequency Response | 38 Hz to 20 kHz (-10 dB) |
| Maximum Sound Pressure Level (SPL) | 128 dB @1 m, calculated |
| Crossover | 1.6 kHz |
| Dispersion | 90° conical |
| Equalization | Low shelving: ±15 dB @ 80 Hz Mid-peaking: ±15 dB @ 2.5 kHz High shelving: ±15 dB @ 12 kHz Increments: ±3 dB |
| Amplifier Power | Low Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: Cooling: multi-speed fan Class D design High Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: Cooling: multi-speed fan Class D design |
| Audio Inputs | 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable) 1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input) 2 x RCA phono - Channel 2 (1 x L/R) |
| Active or Passive | Active, Class D amplification |
| Audio Output | 1 x XLR - Thru (switchable output, channel 1 or mix) |
| Mixer Section | DL2 Digital Mixer System Processing: EQ: 6 speaker modes Alignment delay: 0 to 300 ms FX: 16 presets Multi-band feedback destroyer: On / Off / Clear / Hold Memory: 3 locations for instant venue setting recall and factory reset |
| Power Requirements | 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W |
| AC Plug Style | 3-pin IEC 250VAC |
| Operating Temperature Range | 32 to 104°F (0 to 40°C), extended ambient temperature |
| Construction | PC-ABS cabinet High durability black paint finish Top handle Powder-coated 20 gauge steel grille Three M10 x 17 mm fly points 50° monitor angle (using integrated kickstand) |
| Mounting Options | Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points |
| Dimensions (H x W x D) | 15.9 x 15.3 x 14.3" (403 x 389 x 363 mm) |
| Weight | 31 lb (14.1 kg) |
| Input Impedances | Channel 1: Mic: 3.3kΩ balanced Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS: 16kΩ balanced, 8kΩ unbalanced Channel 2: XLR Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS [Hi-Z instrument]: 1MΩ unbalanced RCA: 25kΩ unbalanced |
| Power Capacity | 1,000W RMS 2,000W peak |
- Class D 1,000W RMS Powered Speaker
- 2,000W Peak Power
- Generates up to 128dB SPL
- Integrated DL2 Digital Mixer
- Two Flexible Input Channels
- DSP Effects, EQ and Audio Tools
- Common-Magnet Design
- Unpowered Audio Thru Output
- Mounting Options
- Mackie DLM12 Full-Range 12" Powered Loudspeaker
- Limited 3-Year Warranty for Electronics
- Limited 2-Year for Drivers
